Keyon Hi-Wall Inverter 18000 BTU R32 Condenser
Contact us for more information
Keyon Hi-Wall Inverter 18000 BTU R32 Condenser
Product number:
SOH18BIK
| Product Group : | Sinclair Highwall - Outdoor |
|---|
General Information
| Product Group : | Sinclair Highwall - Outdoor |
|---|---|
| Colour : | White |
| Dehumidification : | 1.8 L/h |
| Model Number : | SOH-18BIK |
| Type : | Hi-Wall Inverter Condenser |
Additional Info
| Indoor/ Outdoor/ Other : | Outdoor |
|---|---|
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single split |
Air Volume/Air Flow
| Air Flow : | 1950 m³/h |
|---|
Cable
| Communication Cable : | 4 x 0.75 (5m included) |
|---|---|
| Recommended Power Cable : | 3 x 1.5 |
Compressor
| Compressor Model : | FTz-AN108ACBD |
|---|
Connections
| Drain Connection Size : | 16 mm |
|---|---|
| Pipe Diameter Gas Side : | 9.5 mm |
| Pipe Diameter Liquid Side : | 6 mm |
Cooling Capacity
| Cooling Capacity : | 4.6 kW |
|---|
Electrical
| Annual Power Consumption : | 251/1295 kWh |
|---|---|
| Current (Cooling) : | 8 A |
| Current (Heating) : | 9 A |
| Input (Cooling) : | 1355 W |
| Input (Heating) : | 1340 W |
| MRA : | 9 |
| Max Current : | 8 A |
| Max Power Input : | 1900 W |
| Power Input (Heating/Cooling) : | 1.36/1.34 kW |
| Power Supply : | 220 - 240/1/50 V/Ph/Hz |
| Recommended Fuse : | 9.0 A |
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.80 |
|---|---|
| EER : | 3.30 |
| Energy Label (Cooling) : | A++ |
| Energy Label (Heating) : | A+++/A+ |
| SCOP : | 4 |
| SEER : | 6.4 |
Fan
| Number Of Fans : | 1 |
|---|
Heating Capacity
| Heating Capacity : | 5.2 kW |
|---|---|
| P Design Heating Capacity (Average) : | 3.7 kW |
Logistical Information
| Gross Weight : | 29 kg |
|---|
Measurements
| Depth : | 330 mm |
|---|---|
| Height : | 550 mm |
| Net Weight : | 26.5 kg |
| Weight : | 26.5 kg |
| Width : | 732 mm |
Outdoor Unit Attributes
| Depth (OU) : | 330 mm |
|---|---|
| Height (OU) : | 550 mm |
| Sound Pressure Level (OU) : | 53 dB(A) |
| Width (OU) : | 732 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Height Difference (Outdoor is Higher/Lower) : | 10 m |
| Max Pipe Length Without Additional Refrigerant : | 5 m |
| Max Piping Length : | 25 m |
| Min Piping Length : | 3 m |
| Standard Piping Length : | 5 m |
| Total Pipe Length Range : | 25 m |
R32 Performances Cooling
| R32 Cooling Capacity Max : | 5.3 kW |
|---|---|
| R32 Cooling Capacity Min : | 1 kW |
| R32 Cooling Capacity Rated : | 4.6 kW |
| R32 Energy Label Cooling : | A++ |
| R32 Pdesignc : | 4.6 kW |
| R32 SEER : | 6.4 |
R32 Performances Heating
| R32 Energy Label Heating : | A+ |
|---|---|
| R32 Heating Capacity Max : | 5.7 kW |
| R32 Heating Capacity Min : | 1 kW |
| R32 Heating Capacity Rated : | 5.2 kW |
| R32 Heating Capacity Rated -7°C : | 4.68 kW |
| R32 Power Input Rated Cooling : | 1.36 kW |
| R32 Power Input Rated Heating : | 1.34 kW |
| R32 Qce - Annual Energy Consumption Cooling : | 251 kWh/an |
| R32 Qce - Annual Energy Consumption Heating : | 1295 kWh/an |
| R32 SCOP : | 4 |
Refrigerant
| Additional Charge : | 16 g/m |
|---|---|
| Additional Gas Amount : | 16 g/m |
| GWP : | 675 |
| Refrigerant : | R32 |
| Refrigerant Charge : | 0.75 kg |
| Refrigerant Pipe Size : | 1/4-3/8 in, 6-9.5 mm |
| Refrigerant precharged up to : | 5 m |
Sound Power/Pressure
| Sound Power Level : | 53 dB(A) |
|---|---|
| Sound Pressure Level : | 53 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15-43 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15-24 °C |
| Temperature Range Cooling : | 16-30 °C |
| Temperature Range Heating : | 16-30 °C |
| File name | Extension | Size |
|---|---|---|
| Owners Manual | 2.78 MB | |

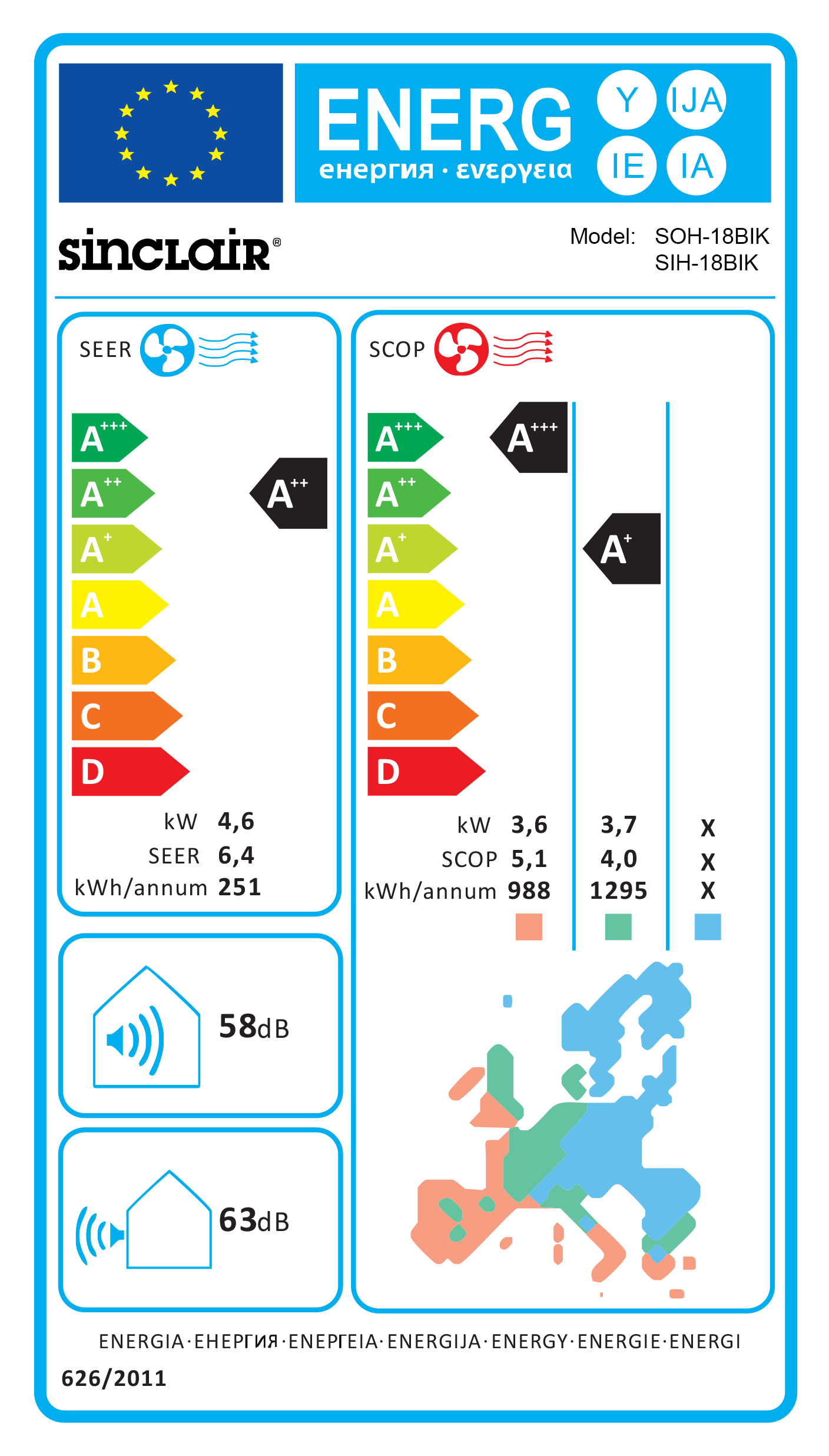

| Energy Label | png | 217.31 KB |
| Brochures | 171.8 KB | |
| Installation Manual | 2.68 MB | |
| Conformity Declaration | 317.13 KB | |
| Brochures | 14.74 MB |
