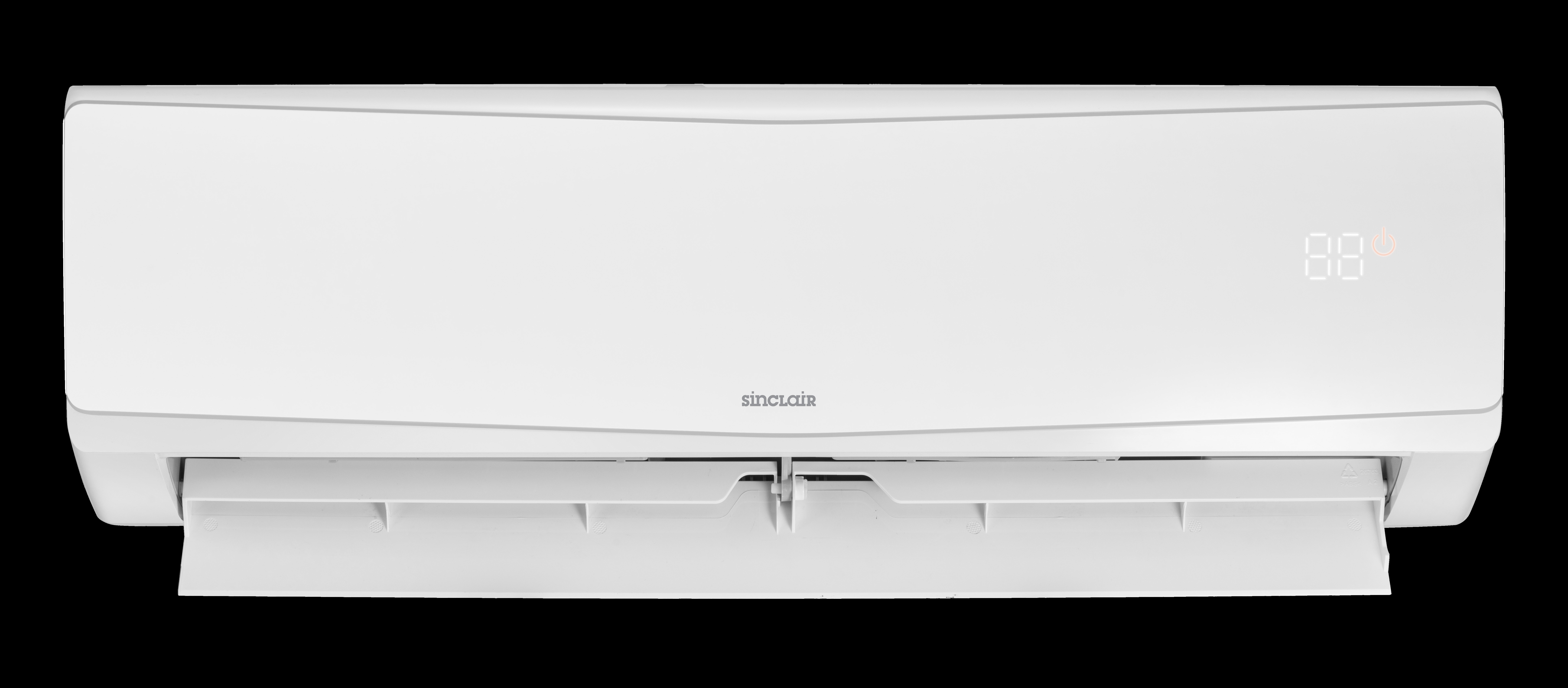

Keyon Hi-Wall Inverter 9000 BTU R32 Evaporator
Contact us for more information
Keyon Hi-Wall Inverter 9000 BTU R32 Evaporator
Product number:
SIH09BIK
| Product Group : | Sinclair Highwall - Indoor |
|---|
General Information
| Product Group : | Sinclair Highwall - Indoor |
|---|---|
| Colour : | White |
| Condensate Water Pump Provided : | No |
| Dehumidification : | 1.4 L/h |
| Model Number : | SIH-09BIK |
| Moisture Removal Volume : | 0.8 L/h |
| Remote Control : | YAA1FB6 (WiFi) |
| Remote Control Provided : | Yes |
| Type : | Hi-Wall Inverter Evaporator |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|---|
| Single Split / Multi Split : | Single Split |
Air Volume/Air Flow
| Air Flow : | 550 m³/h |
|---|---|
| Air Flow (Low/Medium/High) : | 550/480/340/280 m³/h |
| Air Volume : | 550 m³/h |
Cable
| Communication Cable : | 4 x 0.75 (5m included) |
|---|---|
| Recommended Power Cable : | 3 x 1.5 |
Connections
| Condensate Drain Out Connection : | 16 mm |
|---|---|
| Pipe Diameter Gas Side : | 9.5 mm |
| Pipe Diameter Liquid Side : | 6 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 2.5 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 0.6/3.4 kW |
| Cooling Capacity (Min/Rated/Max) : | 0.9/2.5/2.6 kW |
Electrical
| Annual Power Consumption : | 143/833 kWh |
|---|---|
| Current (Cooling) : | 6 A |
| Current (Heating) : | 7.5 A |
| Input (Cooling) : | 735 W |
| Input (Heating) : | 695 W |
| Max Current : | 6 A |
| Max Power Input : | 1500 W |
| Power Input (Heating/Cooling) : | 695/735 kW |
| Recommended Fuse : | 13(16) |
| Voltage : | 230 V |
Energy Efficiency/Performance
| COP : | 3.98 |
|---|---|
| EER : | 3.63 |
| Energy Label (Cooling) : | A++ |
| Energy Label (Heating) : | A+++/A+ |
| SCOP : | 4.2 |
| SEER : | 6.6 |
Heating Capacity
| Heating Capacity : | 2.8 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 0.9/2.8/3.1 kW |
| Heating Capacity Min/Max : | 0.6/3.7 kW |
| P Design Heating Capacity (Average) : | 2.5 kW |
Indoor Unit Attributes
| Depth (IU) : | 190 mm |
|---|---|
| Height (IU) : | 251 mm |
| Indoor Unit Type : | High Wall |
| Width (IU) : | 770 mm |
Logistical Information
| Gross Weight : | 10 kg |
|---|
Measurements
| Depth : | 190 mm |
|---|---|
| Height : | 251 mm |
| Length : | 770 mm |
| Net Weight : | 8 kg |
| Width : | 770 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 5 m |
| Max Piping Length : | 15 m |
| Min Piping Length : | 3 m |
| Total Pipe Length Range : | 15 m |
R32 Performances Cooling
| R32 Cooling Capacity Max : | 3.4 kW |
|---|---|
| R32 Cooling Capacity Min : | 0.6 kW |
| R32 Cooling Capacity Rated : | 2.7 kW |
| R32 Energy Label Cooling : | A++ |
| R32 Pdesignc : | 2.7 kW |
| R32 SEER : | 6.6 |
R32 Performances Heating
| R32 Energy Label Heating : | A+ |
|---|---|
| R32 Heating Capacity Max : | 3.7 kW |
| R32 Heating Capacity Min : | 0.6 kW |
| R32 Heating Capacity Rated : | 2.8 kW |
| R32 Heating Capacity Rated -7°C : | 2.52 kW |
| R32 Power Input Rated Cooling : | 0.74 kW |
| R32 Power Input Rated Heating : | 0.7 kW |
| R32 Qce - Annual Energy Consumption Cooling : | 833 kWh/an |
| R32 Qce - Annual Energy Consumption Heating : | 833 kWh/an |
| R32 SCOP : | 4.2 |
Refrigerant
| GWP : | 675 |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 0 kg |
| Refrigerant Pipe Size : | 1/4-3/8 in, 6-9.5 mm |
Sound Power/Pressure
| Sound Power Level : | 55 dB(A) |
|---|---|
| Sound Pressure Level : | 40 dB(A) |
| Sound Pressure Level (Low/Medium/High/Quiet) : | 23/29/40/23 dB(A) |
