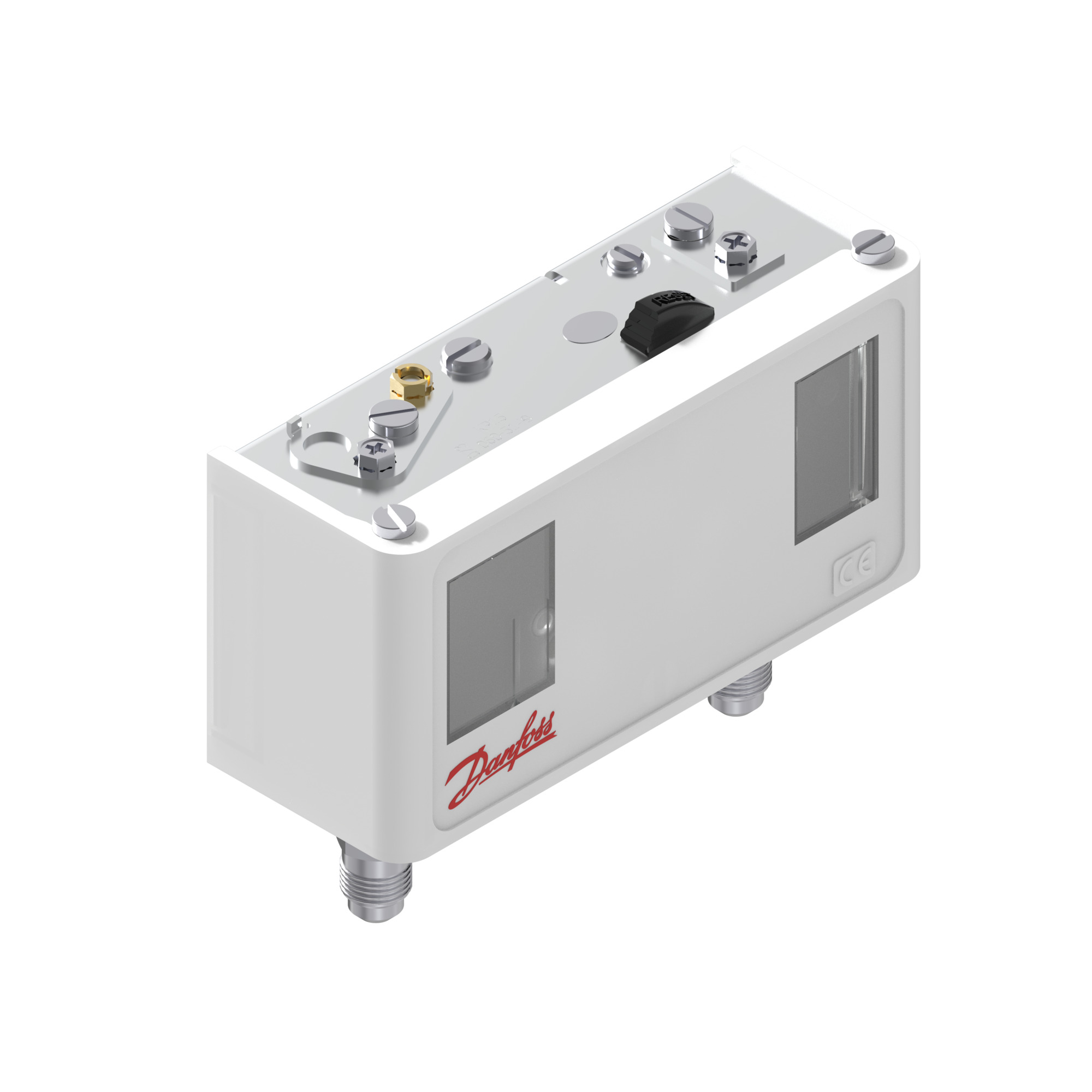

KP15 Pressure Switch HP/LP HP Manual Reset - LP Auto Reset - HP/LP Alarm
Contact us for more information
KP15 Pressure Switch HP/LP HP Manual Reset - LP Auto Reset - HP/LP Alarm
Product number:
RDD4019
| Product Group : | Danfoss KP1 & KP15 Pressure Switches |
|---|
General Information
| Product Group : | Danfoss KP1 & KP15 Pressure Switches |
|---|---|
| Reset Left Side : | Auto |
| Reset Right Side : | Manual Max |
| Type : | Pressure Switch |
Additional Info
| Additional Info : | Not applicable for liquid line |
|---|---|
| Family : | KP |
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Flare |
| Pressure Connection Size : | 1/4 in |
| Pressure Connection Type : | Flare |
Electrical
| Contact Function : | SPDT+SPST(NO) |
|---|---|
| Electric Connection : | Rubber cable gland |
| Electric Connection Size : | 6-14 mm |
| IP Class : | IP30 |
Logistical Information
| Commodity Code : | 90322000 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422032946 |
| Gross Weight : | 0.5 kg |
Measurements
| Weight : | 0.47 kg |
|---|
Oil
| Oil Type : | Oilfree applications |
|---|
Pressure
| Diff Left Side : | 0.7-4.0 Bar |
|---|---|
| Diff Right Side : | 4.0 Bar |
| Max Operating Pressure Left Side : | 17.0 Bar |
| Max Operating Pressure Right Side : | 35.0 Bar |
| Pressure Sensing Elements : | Bellows |
| Regulating Left Side : | -0.2-7.5 Bar |
| Regulating Right Side : | 8.0-32.0 Bar |
Refrigerant
| Refrigerant : | R22, R113, R124, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B, R1234yf, R1234yz, R1234ze |
|---|
Standards
| Approval : | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL873, CS C22.2 |
|---|
Temperature
| Ambient Temperature Note : | 80 °C/176 °F for max 120 min |
|---|---|
| Ambient Temperature Range : | -40-65 °C |
| File name | Extension | Size |
|---|---|---|
| Installation Manual | 567.81 KB | |
| Conformity Declaration | 1.32 MB | |
| Conformity Declaration | 1.02 MB | |
| Conformity Declaration | 1.09 MB | |
| Conformity Declaration | 417.08 KB | |
| Technical Literature | 2.43 MB | |
| Conformity Declaration | 586.38 KB | |
| Conformity Declaration | 1.59 MB | |
| Conformity Declaration | 5.22 MB | |
| Conformity Declaration | 587.66 KB | |
| Installation Manual | 114.03 KB |
