KP5 Pressure Switch HP with Auto Reset
Contact us for more information
KP5 Pressure Switch HP with Auto Reset
Danfoss
Product number:
RDD4009
| Product Group : | Danfoss KP1 & KP15 Pressure Switches |
|---|
General Information
| Product Group : | Danfoss KP1 & KP15 Pressure Switches |
|---|---|
| Type : | Pressure Switch |
Additional Info
| Additional Info : | Not applicable for liquid line |
|---|---|
| Family : | KP |
Connections
| Connection Size : | 1/4 in |
|---|---|
| Connection Type : | Flare |
| Pressure Connection Size : | 1/4 in |
| Pressure Connection Type : | Flare |
Electrical
| Contact Function : | SPDT |
|---|---|
| Electric Connection : | Rubber cable gland |
| Electric Connection Size : | 6-14 mm |
| IP Class : | IP44 |
Logistical Information
| Commodity Code : | 90322000 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422025931 |
| Gross Weight : | 0.34 kg |

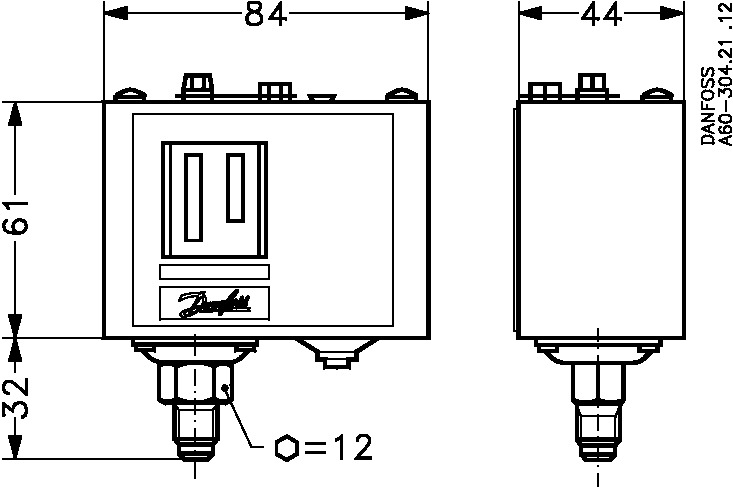

Measurements
| Weight : | 0.31 kg |
|---|
Pressure
| Diff : | 1.8-6.0 Bar |
|---|---|
| Diff Pressure Range : | 1.80-6.00 Bar |
| Max Operating Pressure : | 35.0 Bar |
| Pressure Sensing Elements : | Bellows |
| Regulating Range : | 8.00-32.00 Bar |
Refrigerant
| Refrigerant : | R22, R113, R124, R134a, R404A, R407A, R407C, R407F, R407H, R422B, R422D, R438A, R448A, R449A, R449B, R450A, R452A, R454C, R455A, R507A, R513A, R515B, R1234yf, R1234yz, R1234ze |
|---|
Standards
| Approval : | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LR, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL873, CS C22.2 |
|---|
Temperature
| Ambient Temperature Note : | 80 °C/176 °F for max 120 min |
|---|---|
| Ambient Temperature Range : | -40-65 °C |
