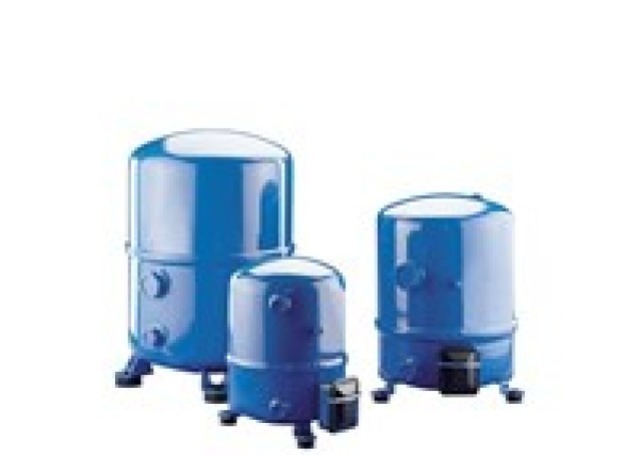

Description
MTZ056-4
Contact us for more information
MTZ56-4VI
Product number:
RDM3056
| Product Group : | MTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz |
|---|
| Application : | H/MBP/AC |
|---|---|
| Capacity Control : | Fixed speed |
| Capacity HBP -5°C : | 9266 kW |
| Capacity HBP -5°C R448A : | 9266 W |
| Colour : | Blue |
| Commodity Code : | 84143081 |
| Connection Type : | Valve/Rotolock |
| Cooling Type : | Suction |
| Country Of Origin : | FRA |
| Diameter : | 288 mm |
| Discharge Connection Height : | 74 mm |
| Discharge Connection Pipe Size : | 3/4 in |
| Discharge Connection Size : | 1 1/4 in |
| Discharge Line Connection : | 1 1/4 in |
| EAN : | 5702428980500 |
| Expansion Device : | V |
| Family : | MTZ |
| Frequency : | 50/60 Hz |
| Gross Weight : | 40.5 kg |
| Height : | 413 mm |
| IP Class : | IP55 |
| LRA : | 64 A |
| Length : | 288 mm |
| MCC : | 14 A |
| Max Refrigerant Charge : | 5.00 kg |
| Model Number : | MTZ56HL4DVE |
| Motor Type : | DOL |
| Nominal HP : | 4.2/3 |
| Number Of Cylinders : | 2 |
| Oil Charge : | 1800 cm³ |
| Oil Equalization : | 3/8'' flare SAE |
| Oil Type : | 175PZ |
| Power Supply : | 440/3/50-60 V/Ph/Hz |
| Power Supply Compressor : | 400/3/50 460/3/60 V/Ph/Hz |
| Product Group : | MTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz |
| R404A Nominal Capacity -5°C : | 6060 W |
| RLA : | 8.6 A |
| Refrigerant : | R134a, R404A, R407A, R407C, R407F, R448A, R449A, R452A, R507A, R513A |
| Suction Connection Height : | 265 mm |
| Suction Connection Pipe Size : | 7/8 in |
| Suction Connection Size : | 1 3/4 in |
| Swept Volume : | 96.13 cm³ |
| Technique : | Reciprocating |
| Type : | MTZ |
| Voltage : | 380-400/3/50 V/Ph/Hz |
| Weight : | 38 kg |
| Width : | 288 mm |
