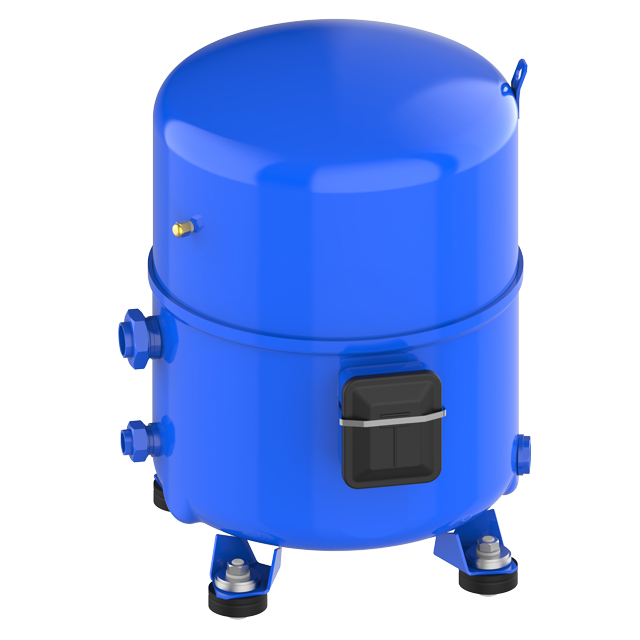

NTZ215A4LR1B DANFOSS 120F0240

Product number: RDM4088

PLEASE LOGIN TO SEE PRICES

Other available options:

Product Group :	NTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz

Capacity Control :	Fixed speed
Colour :	Blue
Commodity Code :	84143081
Connection Type :	Rotolock
Cooling Capacity at 50Hz :	7 kW
Cooling Capacity at 60Hz :	6.8 kW
Country Of Origin :	FRA
Diameter :	352 mm
Discharge Connection Height :	125 mm
Discharge Connection Pipe Size :	3/4 in
Discharge Connection Size :	1 1/4 in
Discharge Line Connection :	1 1/4 in
EAN :	5702428521123
Family :	NTZ
Frequency :	50/60 Hz
Gross Weight :	68.25 kg
Height :	519 mm
Higher Active Pressure :	28.5 Bar
IP Class :	IP54
LRA :	74 A
Length :	352 mm
Lower Active Pressure :	22.6 Bar
MCC :	22.3 A
Max Refrigerant Charge :	10.00 kg
Model Number :	NTZ215A4LR1B
Net Weight :	63.67 kg
Number Of Cylinders :	4
Oil Charge :	3.90 L
Oil Equalization :	3/8'' flare SAE
Oil Type :	160PZ
Phase :	3
Power Supply :	380-400/3/50 V/Ph/Hz
Power Supply Compressor :	400/3/50 460/3/60 V/Ph/Hz
Product Group :	NTZ Single Units 380-400V/3/50Hz - 460V/3/60Hz
RLA :	15.9 A
Refrigerant :	R404A, R452A
Refrigerant Charge :	10 kg
Rotolock Discharge Line Connection :	1 1/4 in
Rotolock Suction Connection :	1 3/4 in
Suction Connection Height :	233 mm
Suction Connection Pipe Size :	1 1/8 in
Suction Connection Size :	1 3/4 in
Swept Volume :	215.00 cm³
Technique :	Reciprocating
Type :	NTZ
Voltage :	400/460 V
Weight :	63.67 kg
Width :	352 mm

Description

NTZ215-4B
