Description
CVPP -0,66 to 7 bar
Contact us for more information

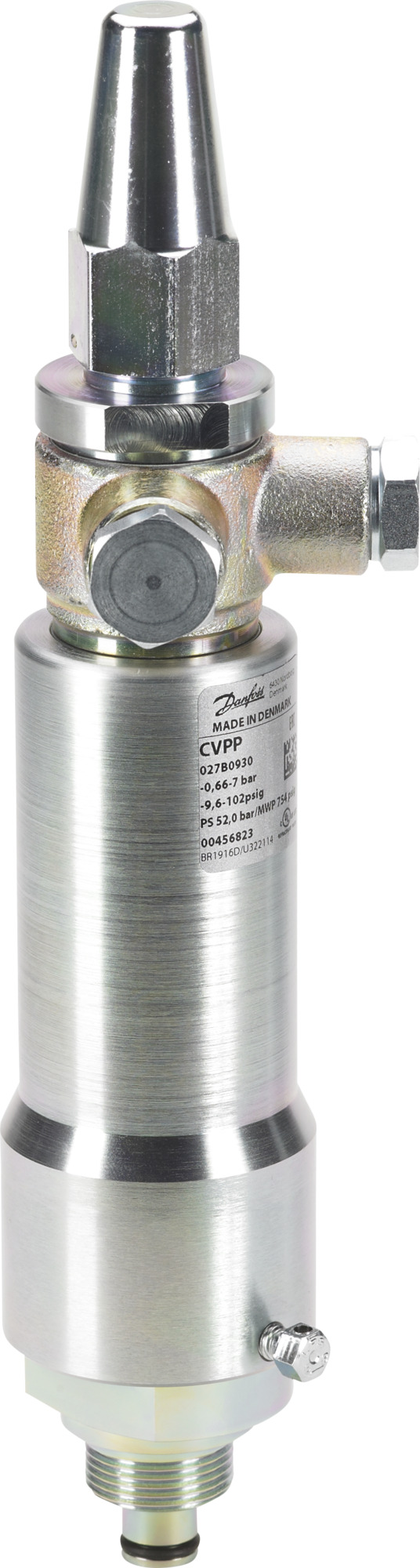

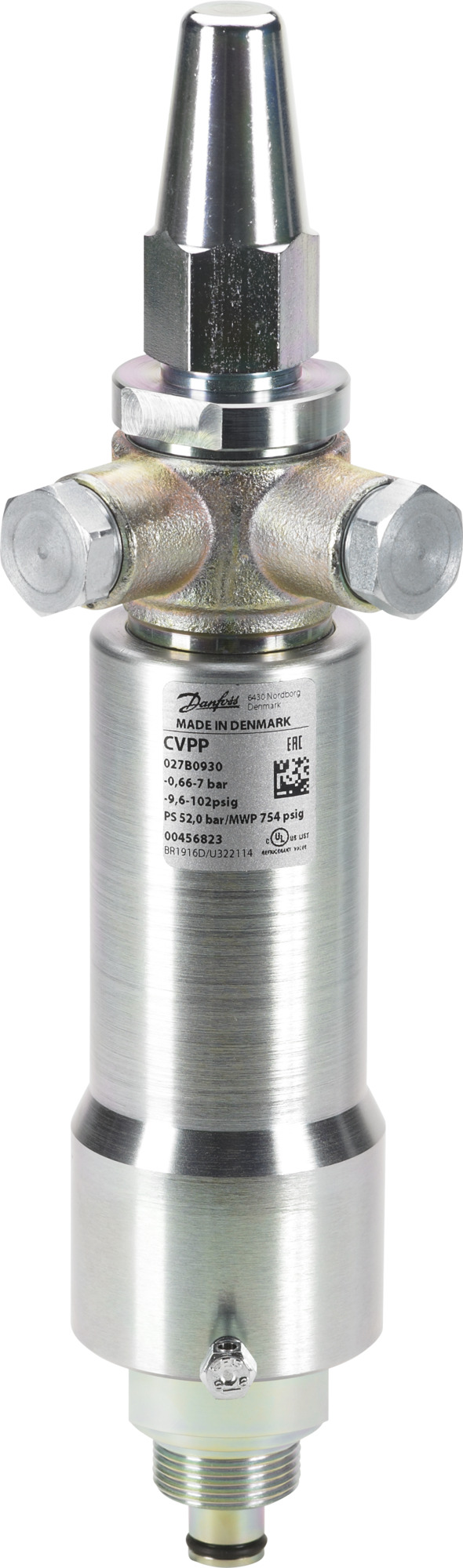

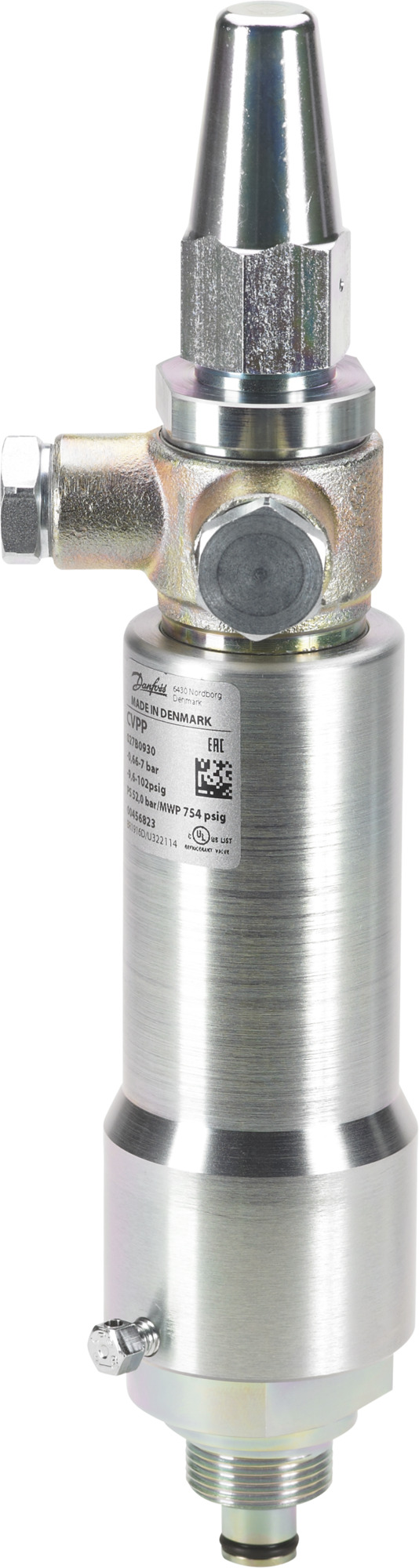

Pilot valve, CVPP-L, Diff.-pressure pilot valve
Product number:
RDB2493
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|---|
| Parts Included : | Adapter; Gasket |
| Type : | CVPP-L |
Additional Info
| Family : | ICS + CVPP |
|---|
Kv Values
| Kv Value : | 0.400 m³/h |
|---|
Logistical Information
| Commodity Code : | 84814010 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428557658 |
| Gross Weight : | 2.106 kg |
Measurements
| Net Weight : | 1.74 kg |
|---|---|
| Weight : | 1.74 kg |
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|---|
| Pressure Range : | -0.66-7.00 Bar |
Refrigerant
| Refrigerant : | R22, R32, R125, R134a, R152a, R227ea, R236fa, R245fa, R290, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R407H, R409A, R410A, R413A, R417A, R421A, R422A, R422B, R422D, R438A, R442A, R444B, R447A, R447B, R448A, R449A, R449B, R450A, R452A, R452B, R454A, R454B, R454C, R455A, R463A, R502, R507A, R512A, R513A, R513B, R515A, R515B, R516A, R717, R744, R1233zd(E), R1234yf, R1234ze(E) |
|---|
Standards
| Approval : | EAC, UL |
|---|
Temperature
| Max Temperature : | 120 °C |
|---|---|
| Min Temperature : | -60 °C |
| Temperature Range : | -60-120 °C |
Valves
| CV Value : | 0.460 gal/min |
|---|---|
| Fluid Group : | 1 |
| Valve Version : | Low pressure |
