EVM-NO PILOT VALVE
Contact us for more information

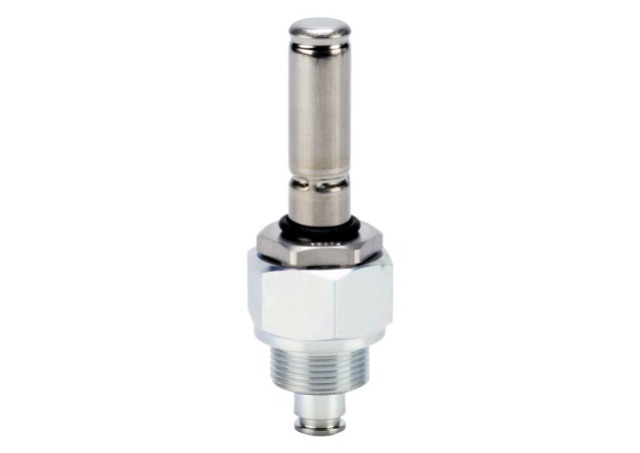

Pilot valve, EVM NO
Danfoss
Product number:
RDB2508
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|
General Information
| Product Group : | Danfoss Pressure & Temperature Regulating Valves |
|---|---|
| Function : | NO |
| Model Number : | 027B1130 |
| Type : | EVM NO |
Additional Info
| Family : | ICS + EVM |
|---|
Coils
| Coil : | No |
|---|
Connections
| Connection Type : | Thread |
|---|---|
| Inlet Type : | Thread |
Kv Values
| Kv Value : | 0.118 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422029625 |
| Gross Weight : | 0.248 kg |
Material
| Body Material : | Steel |
|---|
Measurements
| Weight : | 0.23 kg |
|---|
Pressure
| Max OPD, 10W AC : | 19 Bar |
|---|---|
| Max Operating Pressure : | 52.0 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717, R744 |
|---|
Standards
| Approval : | EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature Range : | -40-80 °C |
|---|---|
| Medium Temperature Range : | -60-120 °C |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| CV Value : | 0.136 gal/min |
| Direction : | None |
| Orifice Size : | 1.80 mm |
| Valve Operation : | SERVO-PISTON |
