Description
RT5A Pressure Switch M/15
Contact us for more information

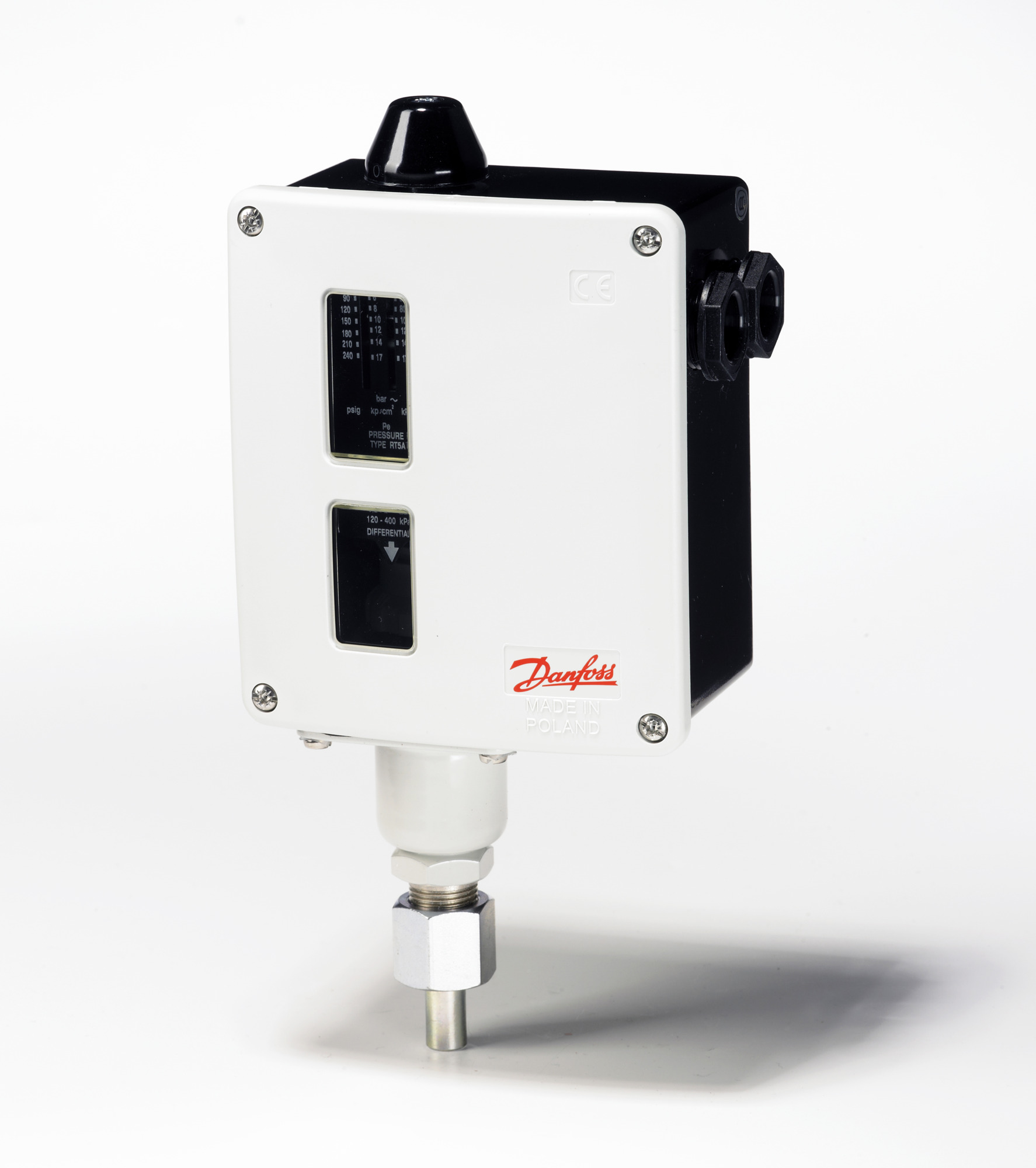

Pressure switch, RT5A
Danfoss
Product number:
RDD4060
| Product Group : | Danfoss Switches & Thermostats |
|---|
General Information
| Product Group : | Danfoss Switches & Thermostats |
|---|---|
| Model Number : | 017-504766 |
| Type : | RT5A |
Additional Info
| Family : | RT |
|---|
Connections
| Connection Size : | G 3/8 in |
|---|---|
| Pressure Connection Size : | 3/8 in |
| Pressure Connection Type : | G |
Electrical
| Contact Function : | SPDT |
|---|---|
| Electric Connection : | Female Screwed cable entry |
| Electric Connection Size : | 2xPg13.5 |
| IP Class : | IP54 |
Logistical Information
| Commodity Code : | 90322000 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428517492 |
| Gross Weight : | 0.922 kg |
Measurements
| Weight : | 0.81 kg |
|---|
Pressure
| Burst Pressure : | 88.0 Bar |
|---|---|
| Diff : | 1.3 Bar |
| Differential Pressure : | 1.30 Bar |
| Max Operating Pressure : | 22.0 Bar |
| Pressure Sensing Elements : | Bellows |
| Regulating Range : | 4.00-17.00 Bar |
Standards
| Approval : | CCC, CE, CMIM, EAC, LLC CDC EURO-TYSK, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -50-70 °C |
|---|
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 1.32 MB | |
| Installation Manual | 4.58 MB | |
| Conformity Declaration | 1.29 MB | |
| Technical Literature | 1.5 MB | |
| Conformity Declaration | 1.59 MB | |
| Conformity Declaration | 2.35 MB | |
| Conformity Declaration | 1.05 MB |
