Description

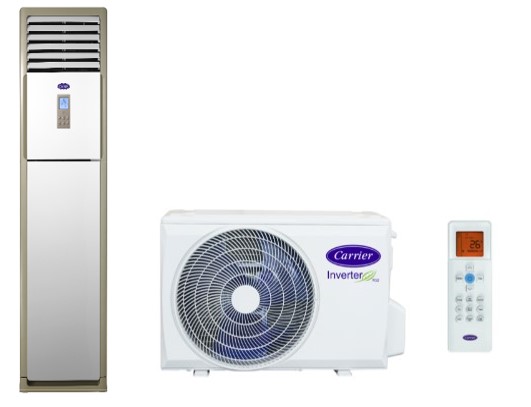

QFM60NS 60000 Btu/h floor standing unit R410a 380v
Contact us for more information
QFM60NS 60000 Btu/h floor standing unit R410a 380v
Product number:
QFM60NS
| Product Group : | Carrier Floor Standing |
|---|
General Information
| Product Group : | Carrier Floor Standing |
|---|---|
| Model Number : | QFM60NS |
Electrical
| Max Current : | 12.6 A |
|---|---|
| Power Supply : | 380-415/3/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.38 |
|---|---|
| EER : | 2.56 |
Indoor Unit Attributes
| Depth (IU) : | 455 mm |
|---|---|
| Height (IU) : | 1934 mm |
| Width (IU) : | 600 mm |
Logistical Information
| Gross Weight : | 85.6 kg |
|---|
Pipes
| Max Height Difference : | 30 m |
|---|---|
| Max Piping Length : | 50 m |
Refrigerant
| Refrigerant : | R410A |
|---|---|
| Refrigerant Charge : | 3.3 kg |
| Refrigerant Pipe Size : | 3/4 in, 3/8 in |
Temperature
| Temperature Range Cooling : | 17～32 °C |
|---|---|
| Temperature Range Heating : | 0～30 °C |
| File name | Extension | Size |
|---|---|---|
| Brochures | 247.81 KB |
