Description

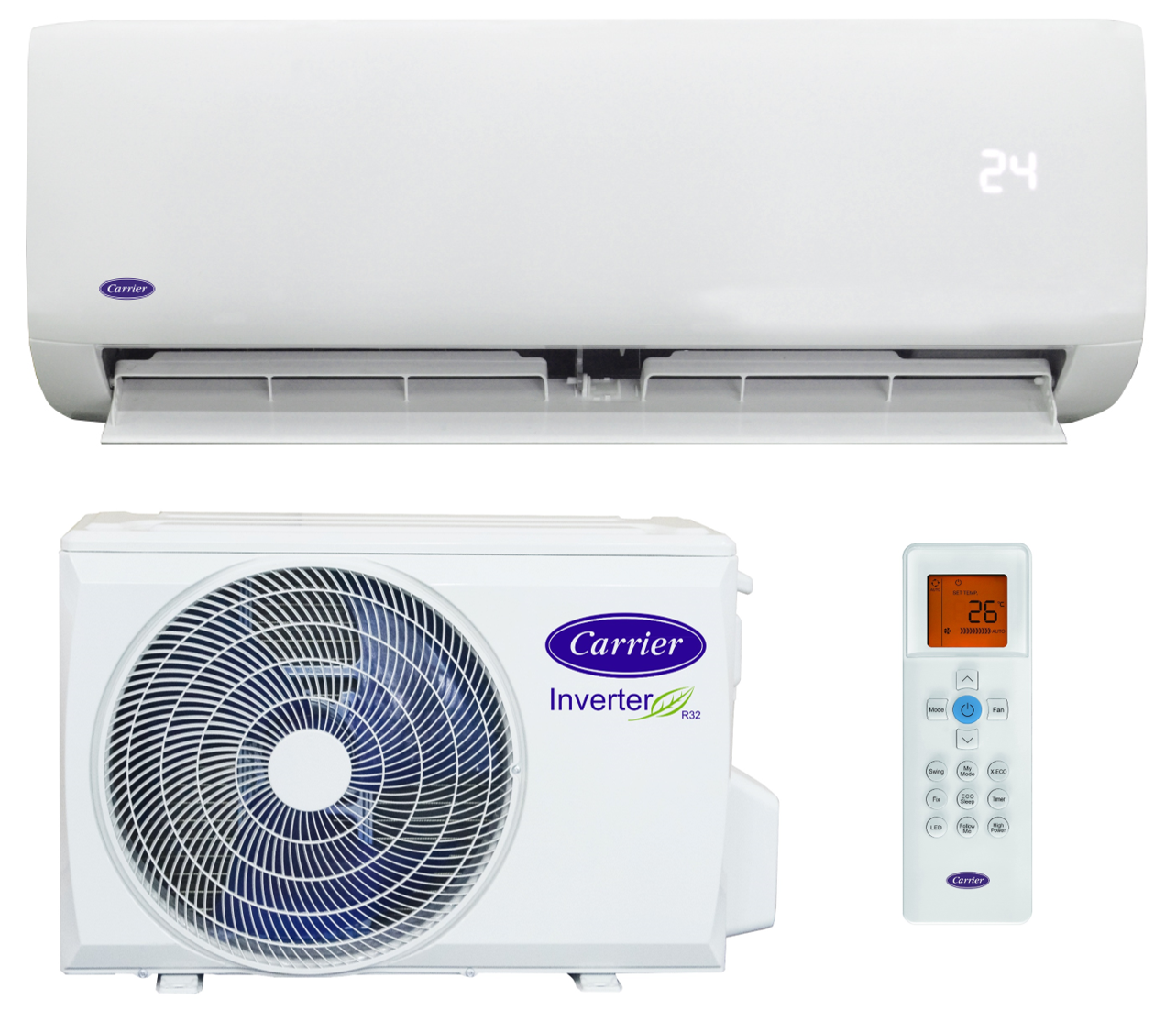

QHG018DS 18000Btu/h DC Inverter Highwall Split
Contact us for more information
QHG018DS 18000Btu/h DC Inverter Highwall Split
Product number:
QHG018DS
| Product Group : | Carrier Inverter |
|---|
General Information
| Product Group : | Carrier Inverter |
|---|---|
| Model Number : | QHG018DS |
| Remote Control : | Infrared |
| Type : | Hi-Wall Inverter System |
Air Volume/Air Flow
| Air Flow Cooling (Low/Medium/High) : | 780/560/460 m³/h |
|---|
Cooling Capacity
| Cooling Capacity : | 5.2 kW |
|---|
Electrical
| Max Current : | 13 A |
|---|---|
| Power Consumption : | 2600 kW |
| Power Supply : | 220-240 V |
Energy Efficiency/Performance
| COP : | 3.43 |
|---|---|
| EER : | 3.33 |
Heating Capacity
| Heating Capacity (Min/Rated/Max) : | 6.0 kW |
|---|
Measurements
| Height : | 321 mm |
|---|---|
| Weight : | 11.4 kg |
| Width : | 971 cm |
Pipes
| Max Height Difference : | 20 m |
|---|---|
| Max Piping Length : | 30 m |
Refrigerant
| Refrigerant : | R410A |
|---|---|
| Refrigerant Charge : | 1.35 kg |
| Refrigerant Pipe Size : | 1/2 in, 1/4 in |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 29/35/42 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | 16~32 °C |
|---|---|
| Temperature Range Heating : | 0-30 °C |
Set Component Parts
