Description

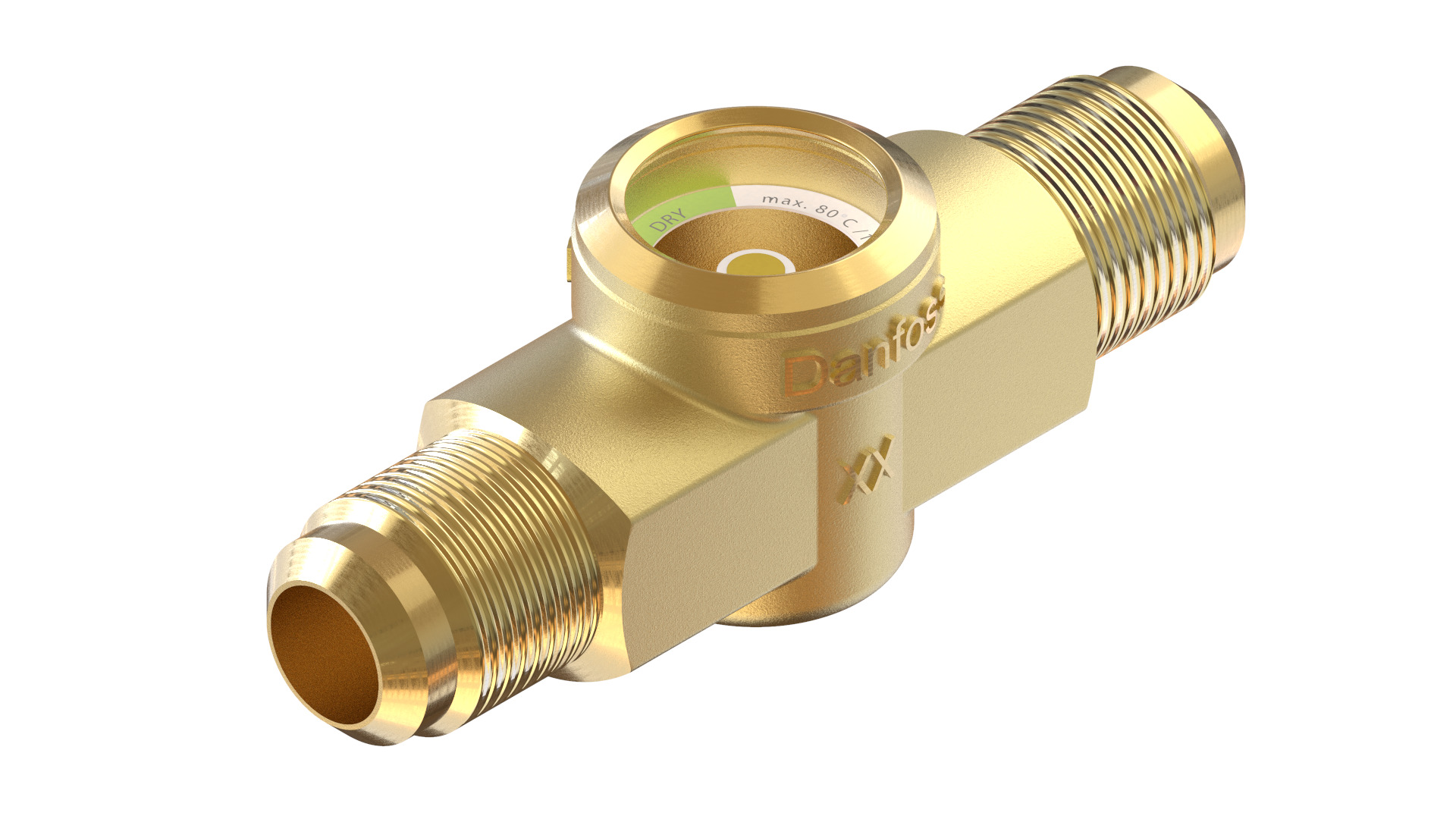

Sight Glass HP 5/8" FL SGP16N
Contact us for more information
Sight Glass HP 5/8" FL SGP16N
Product number:
RDE1108
| Product Group : | Danfoss |
|---|
| Approval : | C UL US LISTED, EAC |
|---|---|
| Body Material : | Brass |
| Commodity Code : | 90261089 |
| Connection Material : | Brass |
| Connection Size : | 5/8 in, 16 mm |
| Connection Type : | Flare |
| Country Of Origin : | IND |
| EAN : | 5702428818865 |
| Family : | SG |
| Flow Direction Indicator : | N indicator |
| Green: Max Moist condition at 25 °C : | R22: 30 ppm, R134a: 30 ppm, R404A: 20 ppm, R407A: 29 ppm, R407C: 30 ppm, R407F: 30 ppm, R410A: 66 ppm, R448A: 28 ppm, R449A: 29 ppm, R450A: 23 ppm, R452A: 20 ppm, R507A: 15 ppm, R513A: 22 ppm |
| Green: Max Moist condition at 43 °C : | R22: 50 ppm, R134a: 45 ppm, R404A: 25 ppm, R407A: 48 ppm, R407C: 60 ppm, R407F: 60 ppm, R410A: 135 ppm, R448A: 70 ppm, R449A: 53 ppm, R450A: 46 ppm, R452A: 30 ppm, R507A: 30 ppm, R513A: 22 ppm |
| Gross Weight : | 0.332 kg |
| Inlet Connection Size : | 5/8 in, 16.00 mm |
| Inlet Interna/lExternal : | External |
| Inlet Type : | Flare |
| Max Operating Pressure : | 52.0 Bar |
| Max Temperature : | 80 °C |
| Min Temperature : | -50 °C |
| Moisture Indicator : | N indicator |
| Net Weight : | 0.31 kg |
| Outlet Connection Size : | 5/8 in, 16.00 mm |
| Outlet Interna/lExternal : | External |
| Outlet Type : | Flare |
| Product Group : | Danfoss |
| Refrigerant : | R22, R32, R134a, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R452B, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R744, R1233zd(E), R1234yf, R1234ze(E) |
| Serviceable : | No |
| Temperature Range : | -50-80 °C |
| Type : | Sight Glass |
| Weight : | 0.31 kg |
| Yellow: Min Moist condition at 25 °C : | R22: 120 ppm, R134a: 100 ppm, R404A: 70 ppm, R407A: 115 ppm, R407C: 140 ppm, R407F: 168 ppm, R410A: 266 ppm, R448A: 110 ppm, R449A: 105 ppm, R450A: 148 ppm, R452A: 79 ppm, R507A: 60 ppm, R513A: 75 ppm |
| Yellow: Min Moist condition at 43 °C : | R134a: 170 ppm, R404A: 100 ppm, R407C: 225 ppm, R507A: 110 ppm |
