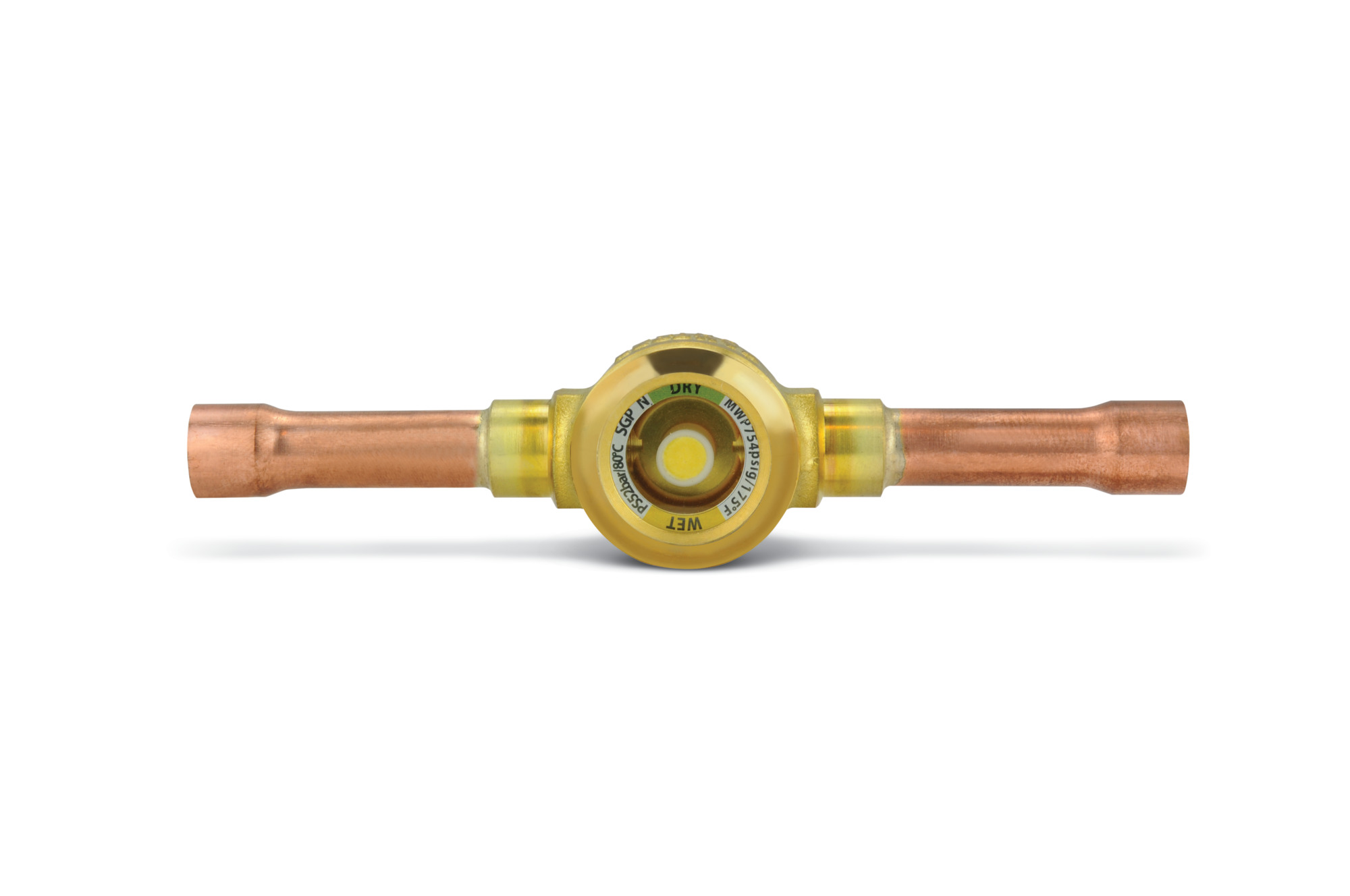

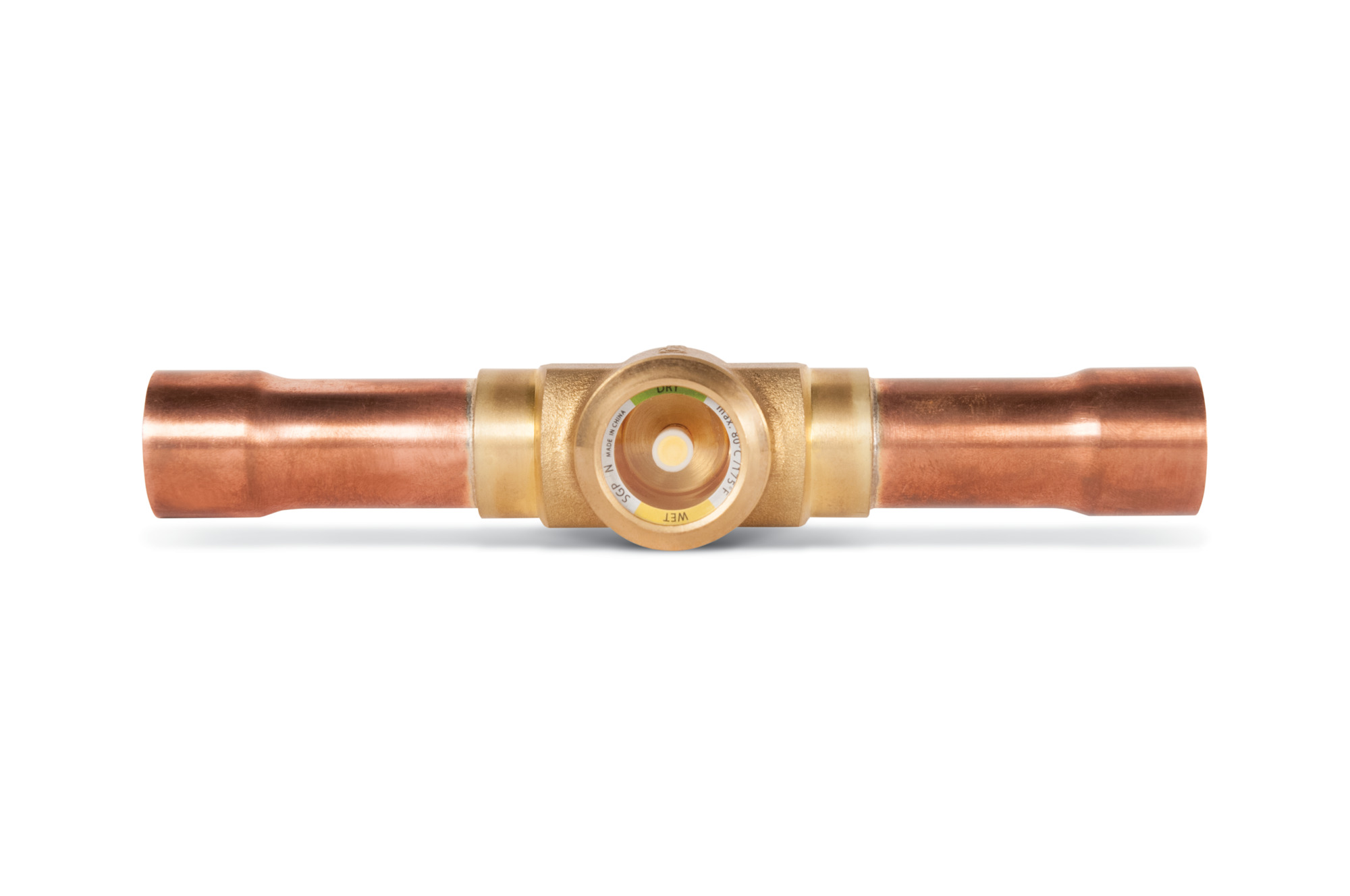

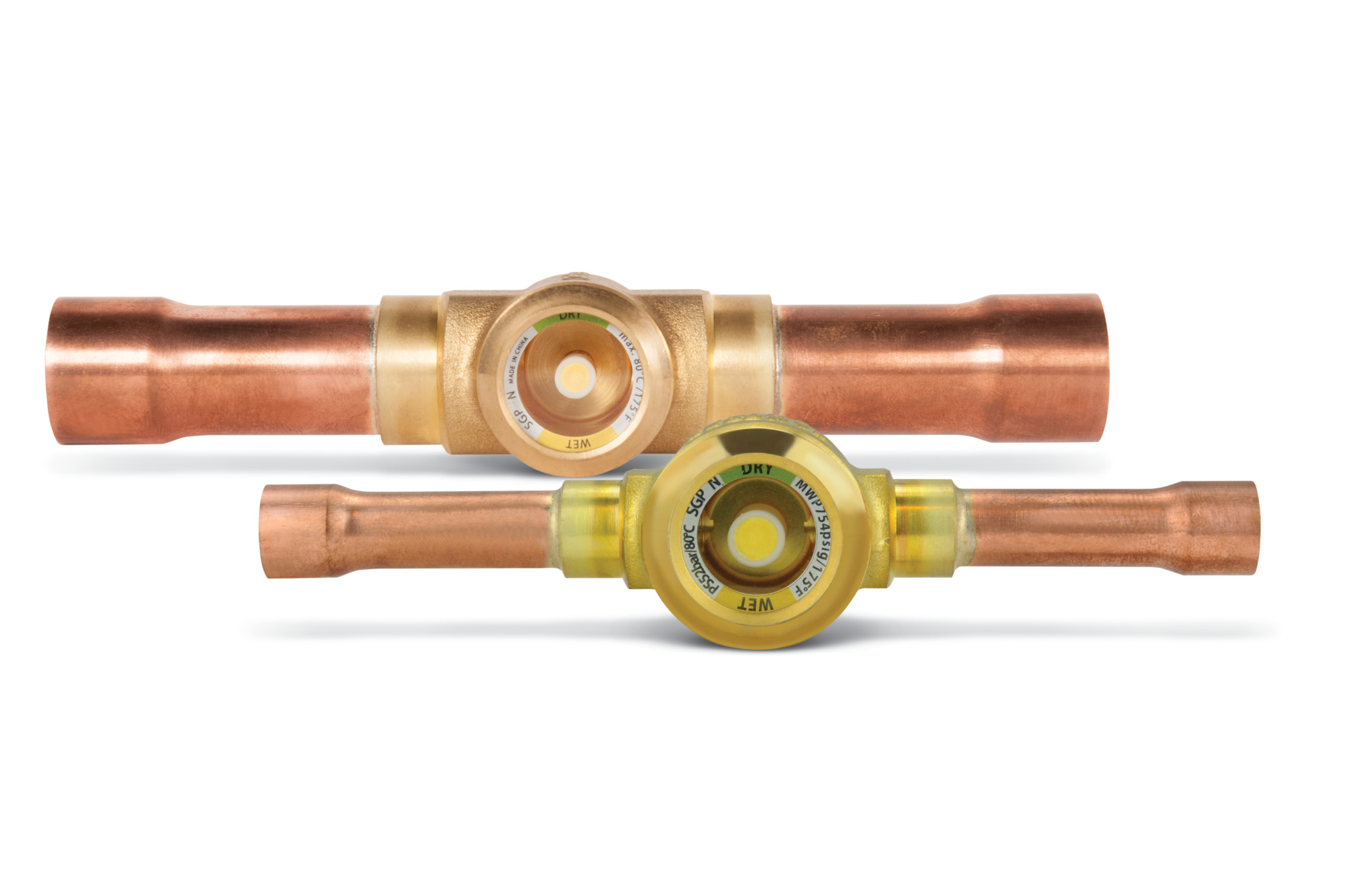

Sight Glass HP 7/8" ODF SGP22sN
Contact us for more information
Sight Glass HP 7/8" ODF SGP22sN
Danfoss
Product number:
RDE1120
| Product Group : | Danfoss |
|---|
General Information
| Product Group : | Danfoss |
|---|---|
| Type : | Sight glass |
Additional Info
| Family : | SG |
|---|
Connections
| Connection Size : | 7/8" lodde, 22 mm |
|---|---|
| Connection Type : | Solder, ODF |
| Inlet Connection Size : | 22.00 mm |
| Inlet Type : | Solder, ODF |
| Outlet Connection Size : | 7/8 in, 22.00 mm |
| Outlet Type : | Solder,ODF |
Features
| Serviceable : | No |
|---|
Logistical Information
| Commodity Code : | 90261089 |
|---|---|
| Country Of Origin : | IND |
| EAN : | 5702428818803 |
| Gross Weight : | 0.316 kg |
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Copper |
Measurements
| Net Weight : | 0.3 kg |
|---|---|
| Weight : | 0.30 kg |
Pressure
| Max Operating Pressure : | 52.0 Bar |
|---|
Refrigerant
| Refrigerant : | R22, R32, R134a, R404A, R407A, R407C, R407F, R407H, R410A, R448A, R449A, R450A, R452A, R452B, R454B, R454C, R455A, R463A, R507A, R513A, R515B, R744, R1233zd(E), R1234yf, R1234ze(E), R1270 |
|---|
Sight Glasses
| Green: Max Moist condition at 25 °C : | R22: 30 ppm, R32: 64 ppm, R134a: 30 ppm, R404A: 20 ppm, R407A: 29 ppm, R407C: 30 ppm, R407F: 30 ppm, R410A: 66 ppm, R448A: 28 ppm, R449A: 29 ppm, R450A: 23 ppm, R452A: 20 ppm, R454B: 29 ppm, R507A: 15 ppm, R513A: 22 ppm, R1270: 16 ppm |
|---|---|
| Green: Max Moist condition at 43 °C : | R22: 50 ppm, R134a: 45 ppm, R404A: 25 ppm, R407A: 48 ppm, R407C: 60 ppm, R407F: 60 ppm, R410A: 135 ppm, R448A: 70 ppm, R449A: 53 ppm, R450A: 46 ppm, R452A: 30 ppm, R454B: 58 ppm, R507A: 30 ppm, R513A: 22 ppm, R1270: 29 ppm |
| Moisture Indicator : | N indicator |
| Yellow: Min Moist condition at 25 °C : | R22: 120 ppm, R32: 289 ppm, R134a: 100 ppm, R404A: 70 ppm, R407A: 115 ppm, R407C: 140 ppm, R407F: 168 ppm, R410A: 266 ppm, R448A: 110 ppm, R449A: 105 ppm, R450A: 148 ppm, R452A: 79 ppm, R507A: 60 ppm, R513A: 75 ppm, R1270: 62 ppm |
| Yellow: Min Moist condition at 43 °C : | R134a: 170 ppm, R404A: 100 ppm, R407C: 225 ppm, R454B: 250 ppm, R507A: 110 ppm |
Standards
| Approval : | C UL US LISTED, EAC |
|---|
Temperature
| Max Temperature : | 80 °C |
|---|---|
| Min Temperature : | -50 °C |
| Temperature Range : | -50-80 °C |
Valves
| Flow Direction Indicator : | N indicator |
|---|
