Description

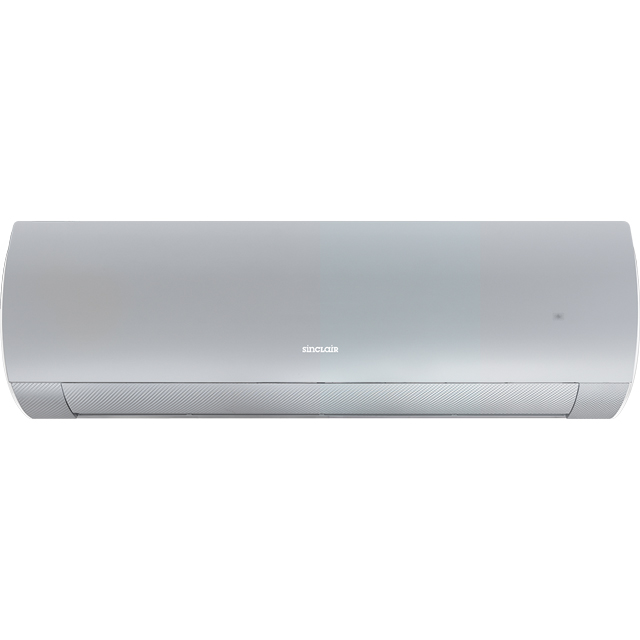

SIH13BITS Sinclair Terrel Inverter 13000 BTU R32 Silver Indoor
Contact us for more information
SIH13BITS Sinclair Terrel Inverter 13000 BTU R32 Silver Indoor
Product number:
SIH13BITS
| Product Group : | Sinclair Highwall - Indoor |
|---|
General Information
| Product Group : | Sinclair Highwall - Indoor |
|---|---|
| Colour : | Silver |
| Dehumidification : | 1.4 L/h |
| Model Number : | SIH-13BITS |
| Remote Control : | YAC1FB9(WIFI) |
Additional Info
| Single Split / Multi Split : | single split |
|---|
Air Volume/Air Flow
| Air Flow : | 700/650/600/540/480/420/360 m³/h |
|---|
Cable
| Communication Cable : | 4 x 0.75 (5m included) |
|---|---|
| Recommended Power Cable : | 3 x 1.5 |
Connections
| Pipe Diameter Gas Side : | 9.5 mm |
|---|---|
| Pipe Diameter Liquid Side : | 6 mm |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 3.5 kW |
|---|---|
| Cooling Capacity (Min/Max) : | 1.0/3.8 kW |
| Cooling Capacity (Min/Rated/Max) : | 1.0/3.5/3.8 kW |
Electrical
| Annual Power Consumption : | 173/1093 kWh |
|---|---|
| Current (Cooling) : | 4.3 A |
| Current (Heating) : | 4.6 A |
| Input (Cooling) : | 962 W |
| Input (Heating) : | 953 W |
| Max Power Input : | 1550 W |
| Power Input (Heating/Cooling) : | 953/962 kW |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
| Recommended Fuse : | 13(16) |
Energy Efficiency/Performance
| COP : | 4 |
|---|---|
| EER : | 3.65 |
| Energy Label (Cooling) : | A++ |
| Energy Label (Heating) : | A+++/A+/B |
| SCOP : | 4.1/5.2/3.1 |
| SEER : | 7.1 |
Heating Capacity
| Heating Capacity : | 3.8 kW |
|---|---|
| Heating Capacity (Min/Rated/Max) : | 0.9/3.8/4.7 kW |
| Heating Capacity Min/Max : | 0.9/4.7 kW |
| P Design Heating Capacity (Average) : | 3.2 kW |
Indoor Unit Attributes
| Depth (IU) : | 212 mm |
|---|---|
| Height (IU) : | 294 mm |
| Width (IU) : | 889 mm |
Logistical Information
| Gross Weight : | 13 kg |
|---|
Measurements
| Depth : | 212 mm |
|---|---|
| Height : | 294 mm |
| Net Weight : | 11 kg |
| Width : | 889 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Pipe Length Without Additional Refrigerant : | 5 m |
| Max Piping Length : | 15 m |
| Min Piping Length : | 3 m |
| Total Pipe Length Range : | 15 m |
Refrigerant
| GWP : | 675 |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 0 kg |
Sound Power/Pressure
| Sound Pressure Level (Low/Medium/High/Quiet) : | 42/38/35/32/29/27/25 dB(A) |
|---|
| File name | Extension | Size |
|---|---|---|
| Energy Label | jpg | 467.94 KB |
| Conformity Declaration | 593.82 KB | |
| Owners Manual | 7.3 MB | |
| Installation Manual | 2.95 MB | |
| Brochures | 1.6 MB |
