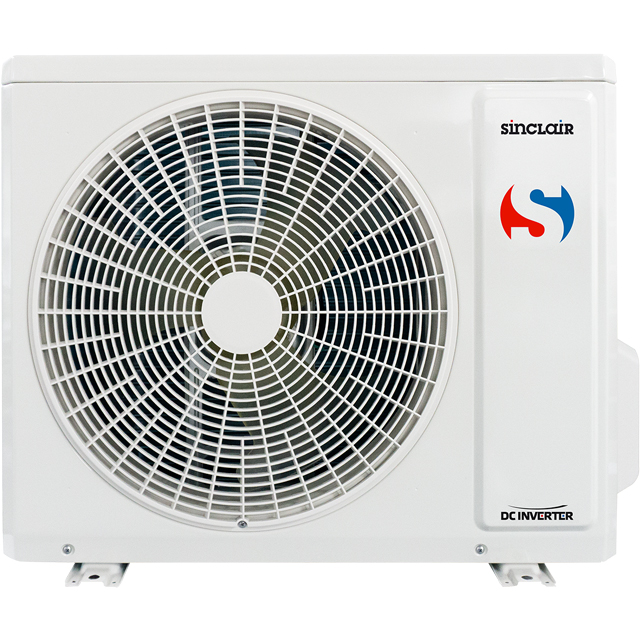

Sinclair 30000 BTU Flex Inverter R32 Outdoor
Contact us for more information
Sinclair 30000 BTU Flex Inverter R32 Outdoor
Product number:
SOH30BIF
| Product Group : | Sinclair Highwall - Outdoor |
|---|
General Information
| Product Group : | Sinclair Highwall - Outdoor |
|---|---|
| Model Number : | GWH30ALEXFK6DNA1IO |
| Type : | Inverter R32 Outdoor |
Additional Info
| Indoor/ Outdoor/ Other : | Indoor |
|---|
Air Volume/Air Flow
| Air Flow : | 3600 m³/h |
|---|
Compressor
| Compressor Model : | QXFS-M180zX170 |
|---|
Connections
| Pipe Diameter Gas Side : | 5/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Cooling Capacity
| Cooling Capacity : | 8.9 kW |
|---|
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|---|
| Voltage : | 220-240 V |
Energy Efficiency/Performance
| EER : | 3.21 |
|---|
Heating Capacity
| Heating Capacity : | 10 kW |
|---|
Measurements
| Height : | 737 mm |
|---|---|
| Length : | 1032 mm |
| Net Weight : | 41.5 kg |
| Weight : | 46 kg |
| Width : | 456 mm |
Outdoor Unit Attributes
| Depth (OU) : | 402 mm |
|---|---|
| Height (OU) : | 660 mm |
| Sound Pressure Level (OU) : | 48 dB(A) |
| Width (OU) : | 958 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Piping Length : | 25 m |
| Min Piping Length : | 5 m |
| Pipe Dimension : | 5/8 in |
Refrigerant
| Additional Gas Amount : | 40 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 1.5 kg |
Sound Power/Pressure
| Sound Power Level : | 70 dB(A) |
|---|---|
| Sound Pressure Level : | 59 dB(A) |
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -15～50 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15～30 °C |
