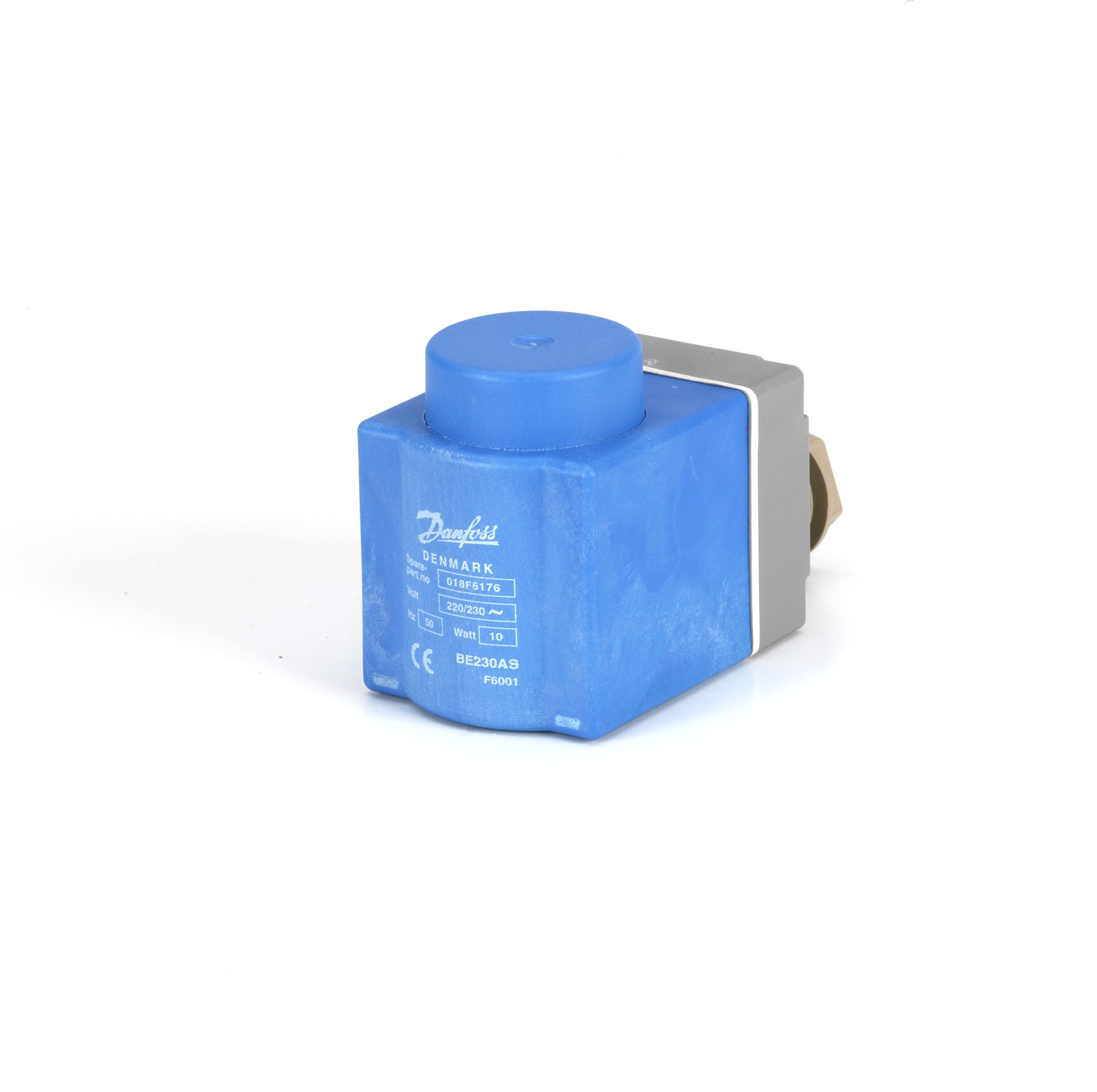

Solenoid Coil for Danfoss EVR Valves
Contact us for more information
Solenoid Coil for Danfoss EVR Valves
Product number:
RDB2302
| Product Group : | Danfoss Solenoid Valves |
|---|
General Information
| Product Group : | Danfoss Solenoid Valves |
|---|---|
| Colour : | Blue |
| Type : | BE230AS |
Cable
| Cable Diameter Max : | 11.0 mm |
|---|---|
| Cable Diameter Min : | 6.0 mm |
Coils
| Coil Fastening : | Clip-on |
|---|
Connections
| Coil Connection Type : | Connection box |
|---|---|
| Connection Type : | Connection box |
Description
| Short Description : | Coil BE230AS 220-230V 50Hz Box |
|---|
Electrical
| Electric Connection : | Terminal box |
|---|---|
| Electric Connection Size : | Pg13.5 |
| Frequency : | 50 Hz |
| IP Class : | IP67 |
| Power Consumption at 50Hz : | 12.0 W |
| Voltage : | 220-230 V |
Energy Efficiency/Performance
| Energy Consumption at 50Hz : | 12 W |
|---|
Humidity
| Relative Humidity Max : | 100 %RH |
|---|---|
| Relative Humidity Min : | 0 %RH |
Logistical Information
| Commodity Code : | 85059029 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428519144 |
| Gross Weight : | 0.33 kg |
Measurements
| Net Weight : | 0.32 kg |
|---|---|
| Weight : | 0.32 kg |
Standards
| Approval : | CE, EAC, LLC CDC TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -40-80 °C |
|---|---|
| Max Ambient Temperature : | 80 °C |
| Min Ambient Temperature : | -40 °C |
Valves
| Actuator Size : | 13.5 mm |
|---|
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 15.53 MB | |
| Conformity Declaration | 315.47 KB | |
| Installation Manual | 657.31 KB |
