Description
EVRA 20 Flange Valve Singlep.
Contact us for more information

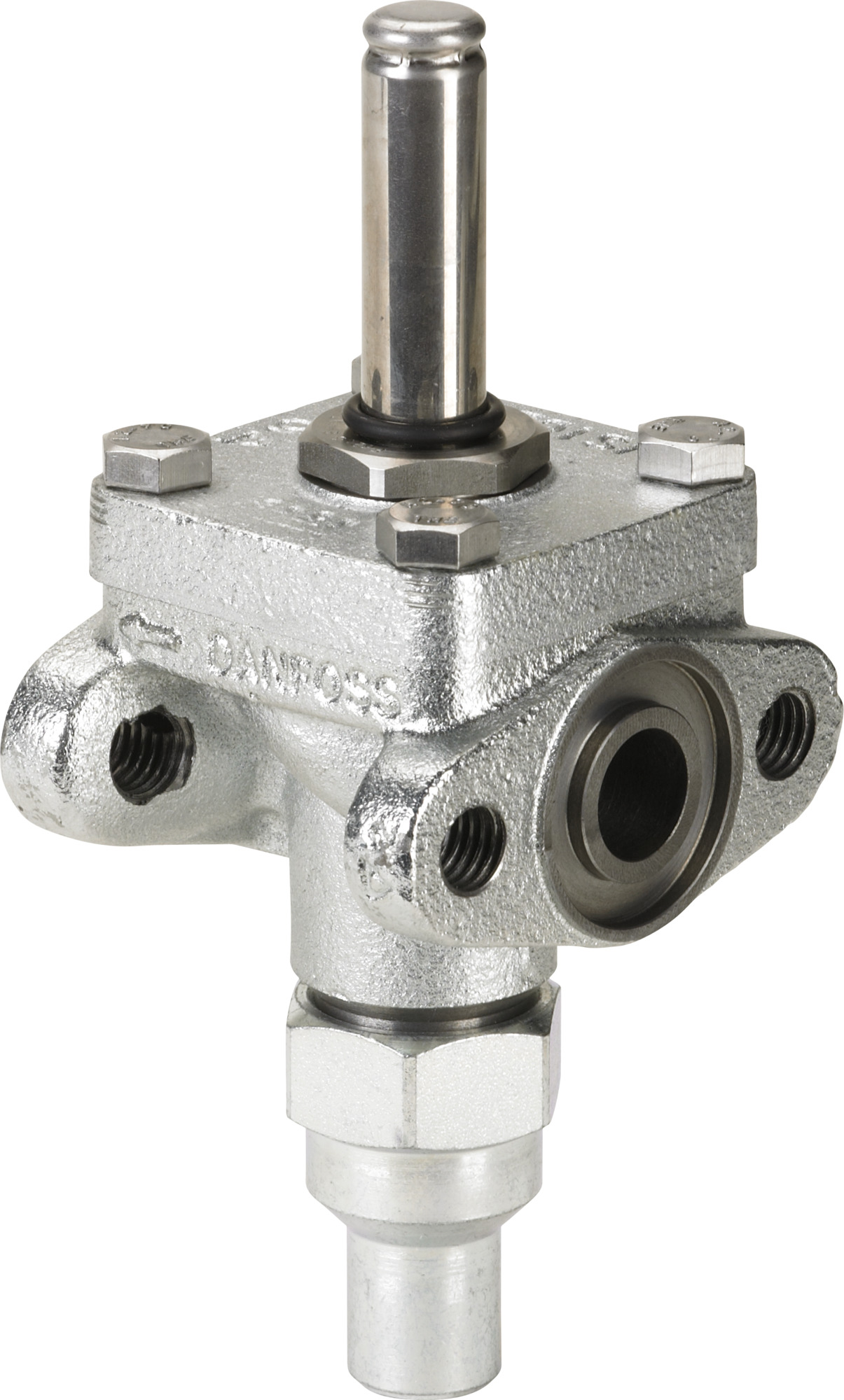

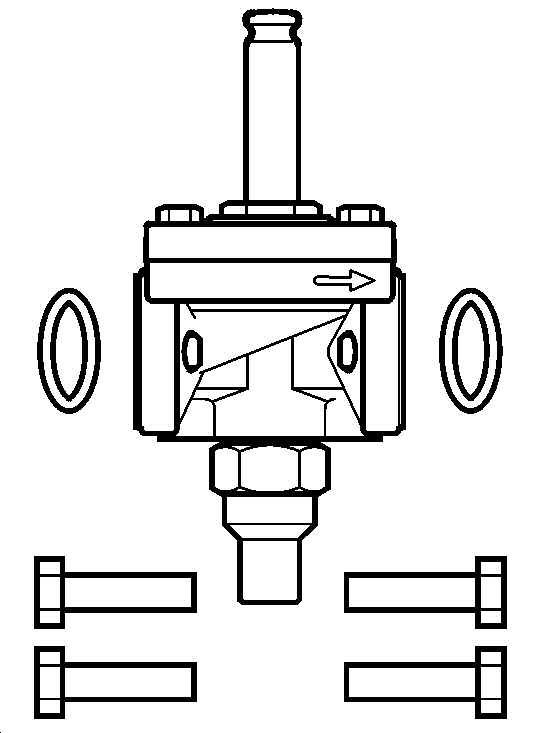

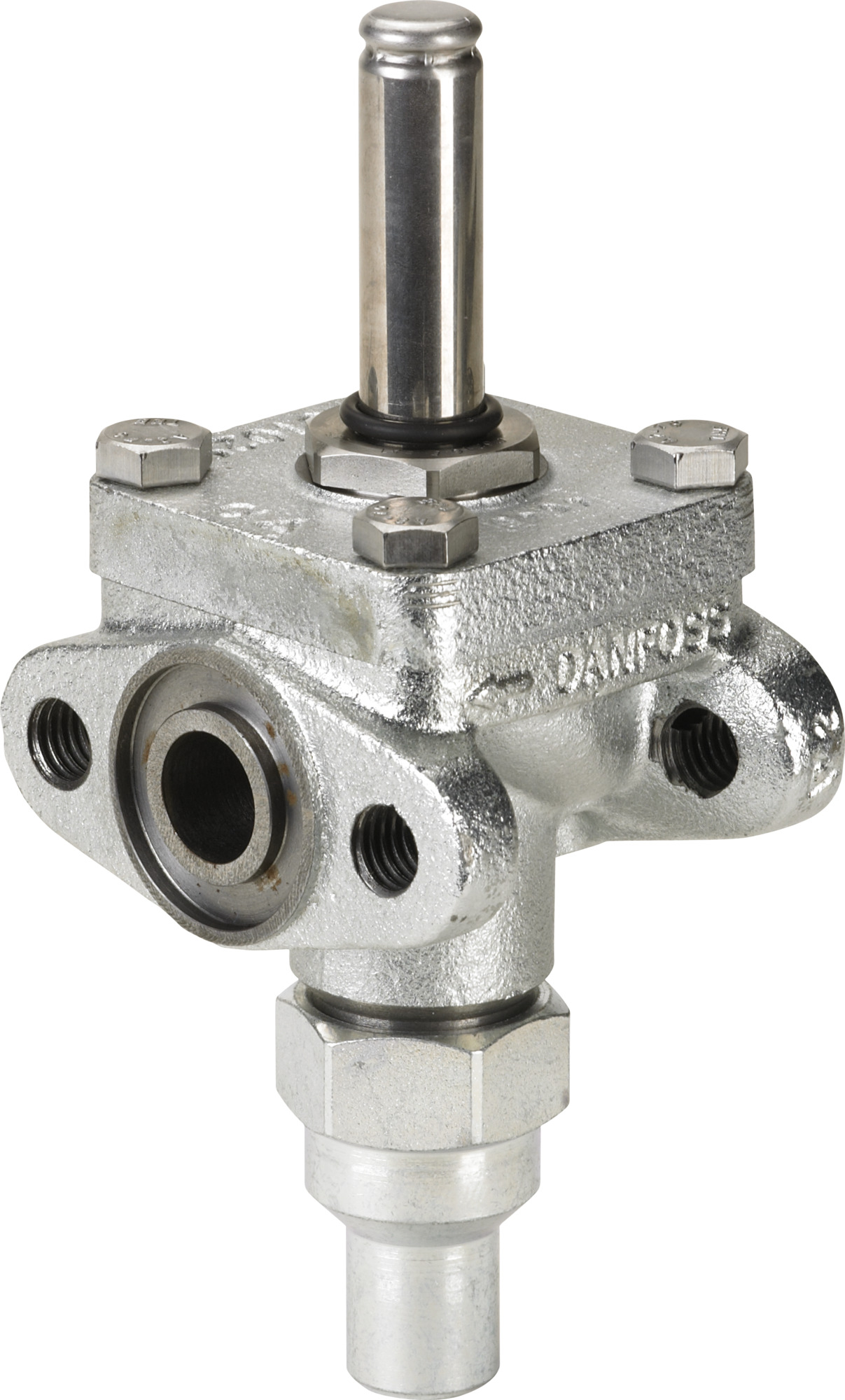

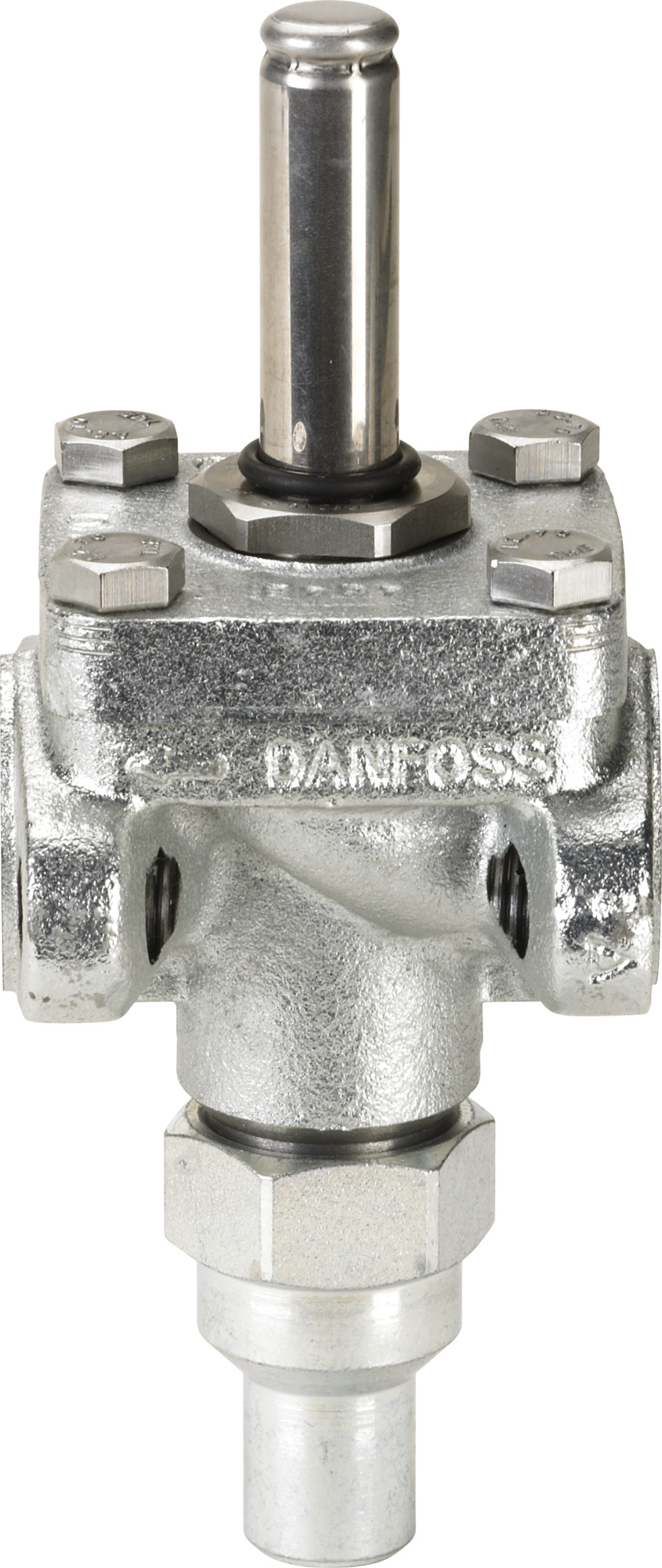

Solenoid valve, EVRA 20
Product number:
RDB2246
| Product Group : | Danfoss Solenoid Valves |
|---|
General Information
| Product Group : | Danfoss Solenoid Valves |
|---|---|
| Function : | NC |
| Type : | EVRA 20 |
Additional Info
| Family : | EVRA |
|---|
Coils
| Coil : | No |
|---|
Connections
| Inlet Type : | Flange |
|---|---|
| Outlet Type : | Flange |
Kv Values
| Kv Value : | 4.50 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702422178187 |
| Gross Weight : | 2.654 kg |
Material
| Body Material : | Cast iron |
|---|
Measurements
| Weight : | 2.43 kg |
|---|
Pressure
| Max OPD, 10W AC : | 21 Bar |
|---|---|
| Max OPD, 12W AC : | 25 Bar |
| Max OPD, 20W AC : | 13 Bar |
| Max Operating Pressure : | 42.0 Bar |
| Min OPD : | 0.050 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature Range : | -40-80 °C |
|---|---|
| Medium Temperature Range : | -40-105 °C |
| Medium Temperature Range Note : | Defrost max 130°C/265°F |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| CV Value : | 5.200 gal/min |
| Direction : | Straightway |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Orifice Size : | 20.00 mm |
| Valve Operation : | Servo-operated (diaphragm) |
| File name | Extension | Size |
|---|---|---|
| Conformity Declaration | 301.63 KB | |
| Technical Literature | 2.7 MB | |
| Conformity Declaration | 560.74 KB | |
| Conformity Declaration | 246.44 KB | |
| Conformity Declaration | 315.47 KB | |
| Installation Manual | 491.4 KB | |
| Technical Literature | 2.63 MB |
Spare Part
