Description
EVRA 40 Valve w. manual DN50 ANSI
Contact us for more information

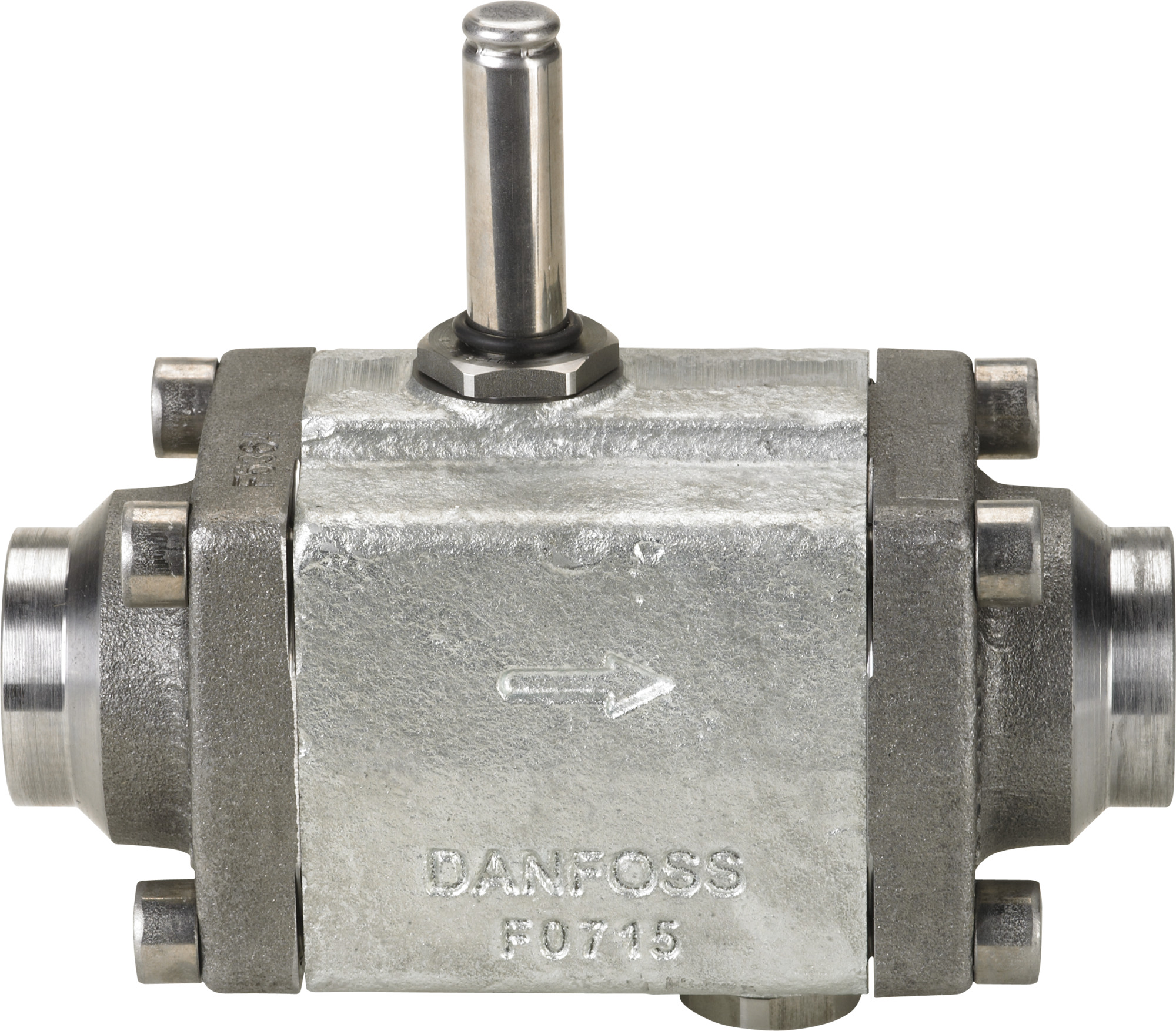

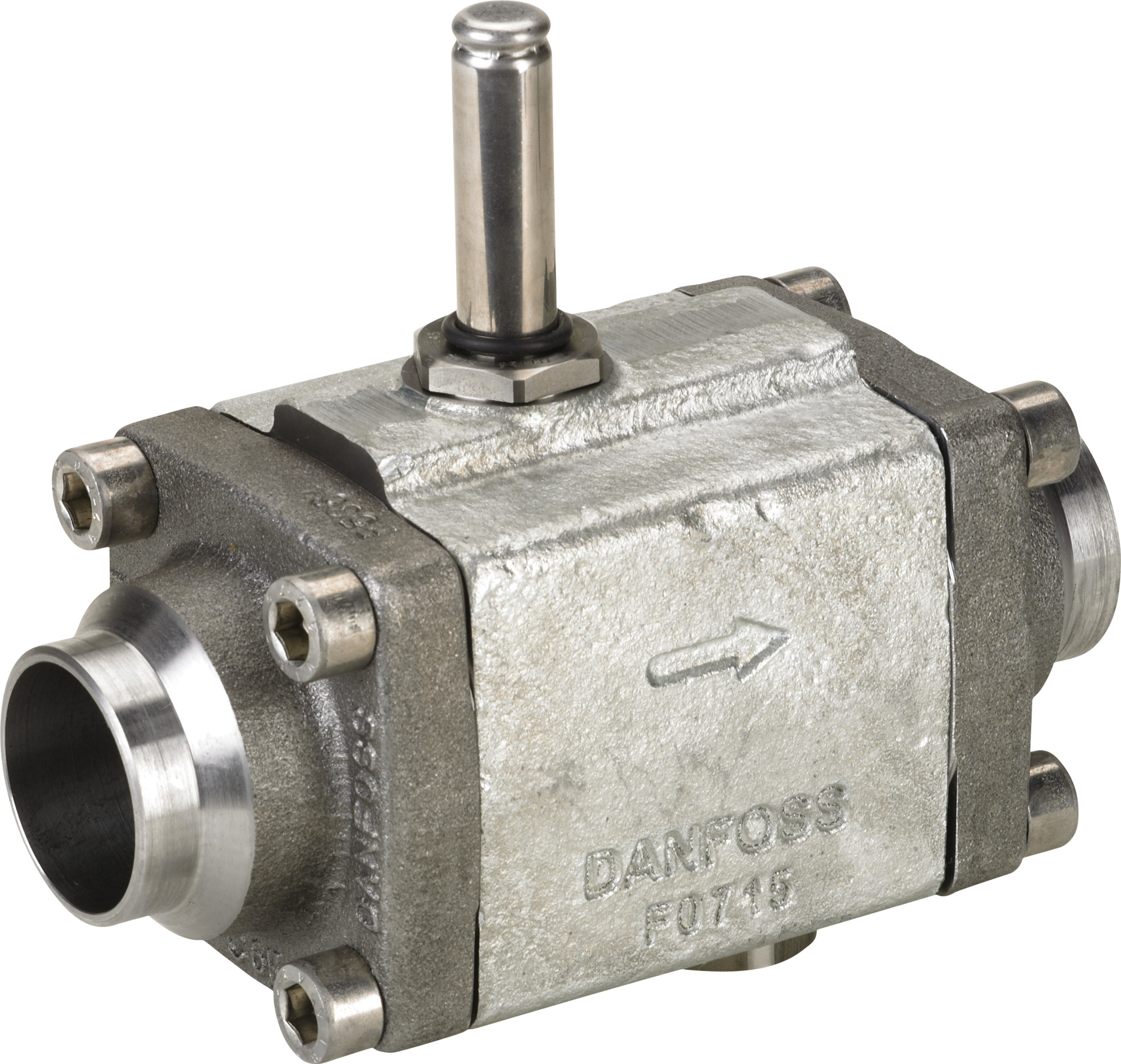

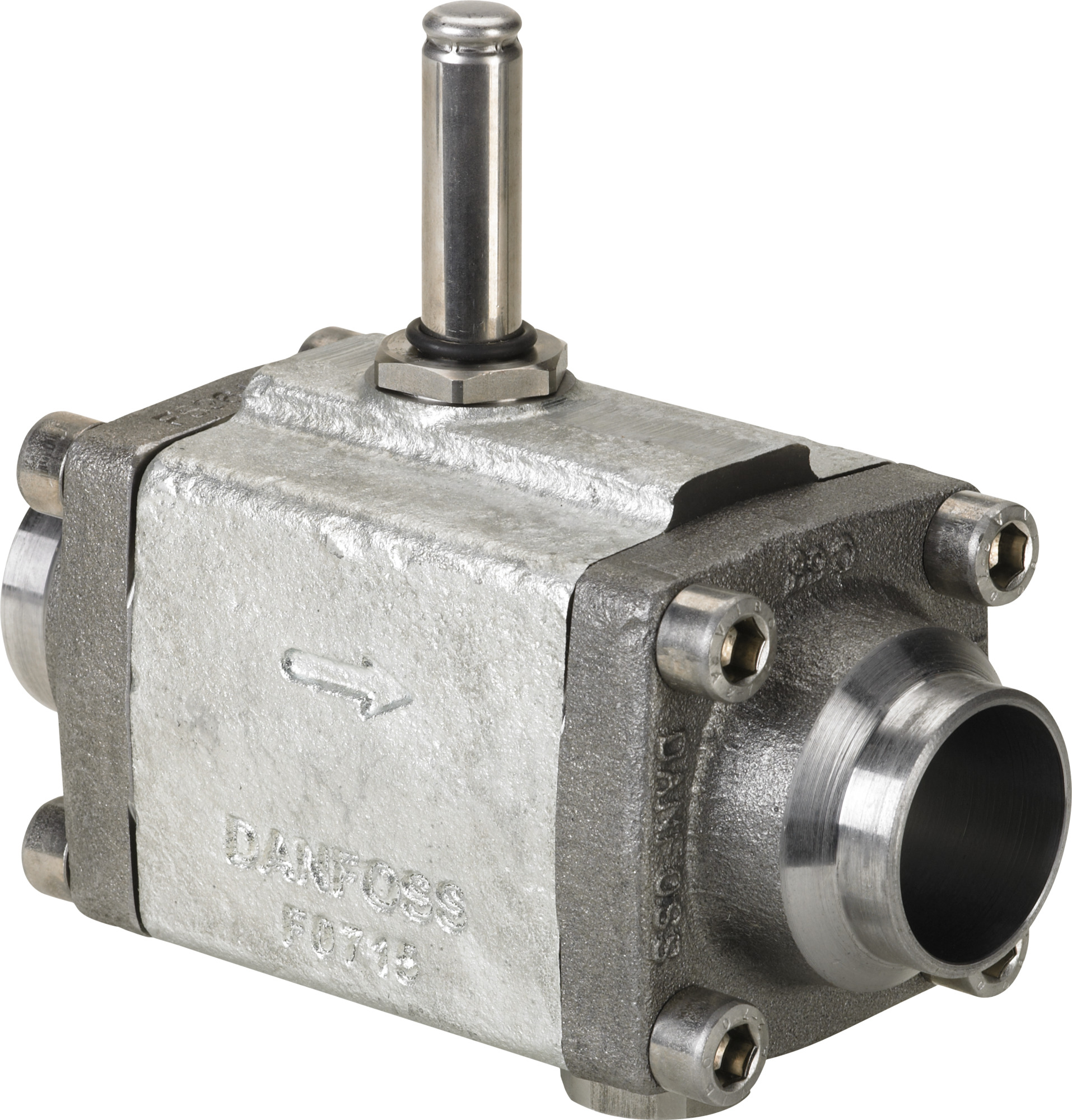

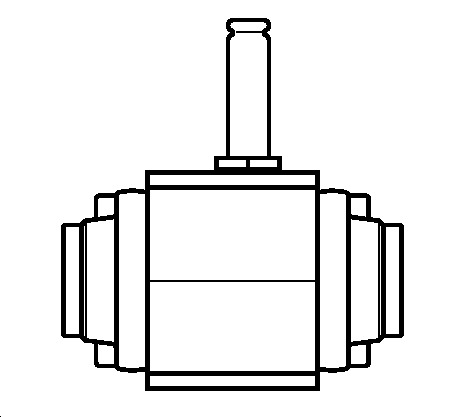

Solenoid valve, EVRA 40
Danfoss
Product number:
RDB2135
| Product Group : | Danfoss Solenoid Valves |
|---|
General Information
| Product Group : | Danfoss Solenoid Valves |
|---|---|
| Function : | NC |
| Type : | EVRA 40 |
Additional Info
| Family : | EVRA |
|---|
Coils
| Coil : | No |
|---|
Connections
| Inlet Connection Size : | 2 in |
|---|---|
| Inlet Type : | Butt weld |
| Outlet Connection Size : | 2 in |
| Outlet Type : | Butt weld |
Kv Values
| Kv Value : | 25.000 m³/h |
|---|
Logistical Information
| Commodity Code : | 84818079 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702428053853 |
| Gross Weight : | 4.542 kg |
Material
| Body Material : | Cast iron |
|---|---|
| Connection Material : | Steel |
Measurements
| Weight : | 4.35 kg |
|---|
Pressure
| Max OPD, 10W AC : | 21 Bar |
|---|---|
| Max Operating Pressure : | 42.0 Bar |
| Min OPD : | 0.200 Bar |
Refrigerant
| Refrigerant : | R22, R134a, R401A, R402A, R404A, R407A, R407B, R407C, R407F, R409A, R410A, R421A, R502, R507A, R717 |
|---|
Standards
| Approval : | C UL US LISTED, EAC, LLC CDC TYSK |
|---|
Temperature
| Ambient Temperature Range : | -40-80 °C |
|---|---|
| Medium Temperature Range : | -40-105 °C |
| Medium Temperature Range Note : | Defrost max 130°C/265°F |
Valves
| Actuator Size : | 13.5 mm |
|---|---|
| CV Value : | 28.900 gal/min |
| Direction : | Straightway |
| Flow Direction Indicator : | Embossed 1-way arrow |
| Orifice Size : | 25.40 mm |
| Valve Operation : | SERVO-PISTON |
