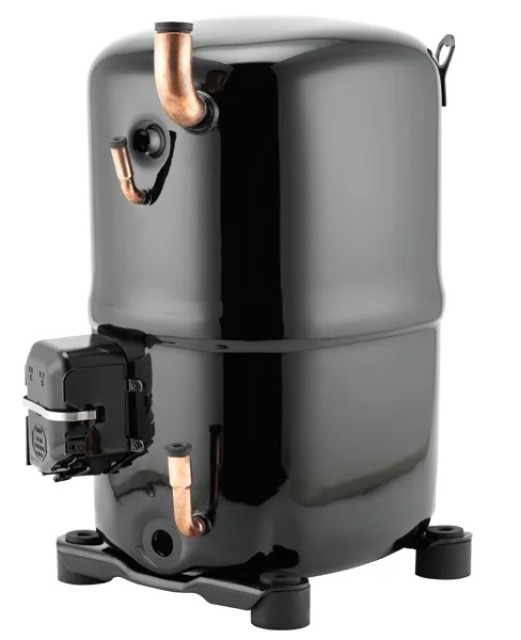

TAG2516Z Low Temp Commercial Compressor on R507A/R404
Contact us for more information
TAG2516Z Low Temp Commercial Compressor on R507A/R404
Product number:
RLH4132
| Product Group : | Tecumseh Low Temp 400V |
|---|
General Information
| Product Group : | Tecumseh Low Temp 400V |
|---|---|
| Model Number : | 2835030102 |
| Type : | Reciprocating Compressors |
Application
| Application : | LBP - Low Back Pressure |
|---|
Compressor
| Displacement : | 112.5 cm³ |
|---|---|
| Power Supply Compressor : | 400/3/50 V/Ph/Hz |
Connections
| Discharge Connection Height : | 15.9 mm |
|---|---|
| Discharge Line Connection Size : | 5/8 in, 15.9 mm |
| Discharge Line Connection Type : | Tube |
| Suction Connection Height : | 22.20 mm |
| Suction Line Connection Size : | 7/8 in, 22.2 mm |
| Suction Line Connection Type : | Tube |
Electrical
| LRA : | 42.5 A |
|---|---|
| MCC : | 0 A |
| Max Current : | 9.90 A |
| Power Supply : | 380-400/3/50 |
| RLA : | 87 A |
| Voltage : | 380 V |
Measurements
| Height : | 368 mm |
|---|---|
| Length : | 361 mm |
| Net Weight : | 46 kg |
| Weight : | 43.044 kg |
| Width : | 261 mm |
Motor
| Motor Type : | 3PH |
|---|
Oil
| Oil Charge : | 1760 cm³ |
|---|---|
| Oil Type : | POE |
Refrigerant
| Refrigerant : | R404A |
|---|
