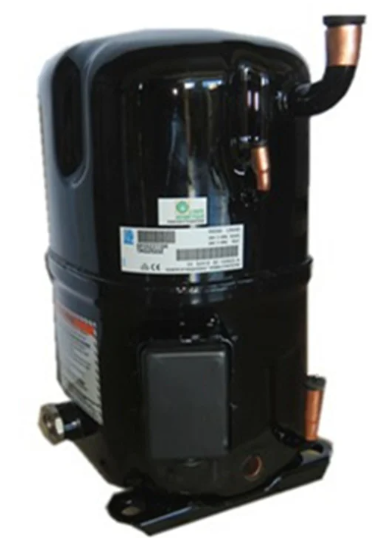

TAG4537Y Medium Temp Commercial Compressor on R134a
Contact us for more information
TAG4537Y Medium Temp Commercial Compressor on R134a
Product number:
RLH2437
| Product Group : | Tecumseh Med Temp 400V |
|---|
General Information
| Product Group : | Tecumseh Med Temp 400V |
|---|---|
| Type : | TAG4537Y |
Capacity
| Capacity at -10°C : | 3.31 kW |
|---|---|
| Capacity at 0°C : | 6.26 kW |
| Capacity at 15°C : | 12.93 kW |
Compressor
| Compressor Type : | Reciprocating piston |
|---|---|
| Displacement : | 112.5 cm³ |
Connections
| Discharge Line Connection Size : | 5/8 in |
|---|---|
| Suction Line Connection Size : | 1/2 in |
Electrical
| MOC : | 5.13 A |
|---|---|
| Max Current : | 10.0 A |
| Max Power Input : | 3.2 kW |
| Phase : | 3 |
| Power Supply : | 400 V |
| Voltage : | 440-440 V |
Material
| Connection Material : | Copper-plated steel |
|---|
Measurements
| Height : | 396 mm |
|---|---|
| Length : | 261 mm |
| Weight : | 44 kg |
| Width : | 224 mm |
Oil
| Oil Charge : | 1.96 dm³ |
|---|
Pipes
| Pipe Diameter : | 5/8 in |
|---|
R449A Performances
| R449A Cooling Capacity Rated 10°C : | 4.56 kW |
|---|---|
| R449A Cooling Capacity Rated 15°C : | 8.18 kW |
Refrigerant
| Refrigerant : | R134a |
|---|
