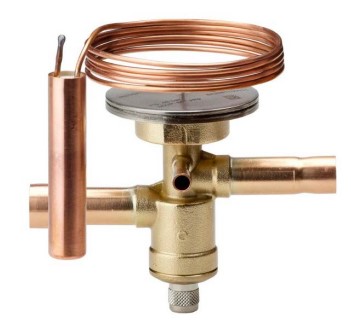

Thermal Expansion Valve TX7-Z19 For R410A/R32 183kW
Contact us for more information
Thermal Expansion Valve TX7-Z19 For R410A/R32 183kW
Product number:
ALC1235
| Product Group : | Copeland TX7 R410a/R32 TEV |
|---|
General Information
| Product Group : | Copeland TX7 R410a/R32 TEV |
|---|---|
| Model Number : | 806822 |
| Type : | Expansion valve with nozzle |
Connections
| Connection Size : | 7/8-1 1/8 in |
|---|---|
| Connection Type : | Solder |
| Inlet Connection Size : | 7/8 in |
| Outlet Connection Size : | 1 1/8 in |
Logistical Information
| Commodity Code : | 84818059 |
|---|---|
| Country Of Origin : | DEU |
Material
| Connection Material : | Copper |
|---|
Measurements
| Capillary Tube Length : | 1.5 m |
|---|
Pressure
| Max Operating Pressure : | 46 Bar |
|---|
R410A Performances
| R410A Nominal Capacity : | 183.4 kW |
|---|
Refrigerant
| Refrigerant : | R410A |
|---|
Temperature
| Temperature Range : | -25~70 °C |
|---|
Valves
| Flow Direction : | Bi-Flow |
|---|---|
| MOP : | 14 °C |
