Description
KP81 Thermostat M/14
Contact us for more information
Thermostat, KP81
Danfoss
Product number:
RDD4081
| Product Group : | Danfoss Switches & Thermostats |
|---|
General Information
| Product Group : | Danfoss Switches & Thermostats |
|---|---|
| Charge Type : | Adsorption |
| Type : | KP81 |
Additional Info
| Family : | KP |
|---|
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating AC1 : | 16 A, 400 V |
| Contact Rating AC3 : | 16 A, 400 V |
| Contact Rating AC15 : | 10 A, 400 V |
| Contact Rating DC13 : | 12 A, 220 V |
| Contact Rating LR : | 112 A, 400 V |
| Electric Connection : | Rubber cable gland |
| Electric Connection Size : | 6-14 mm |
| Flex, Ferrules : | 0.5 - 1.5 mm² |
| Flex, No Ferrules : | 0.7 - 2.5 mm² |
| IP Class : | IP30 |
| Rated Impulse Voltage : | 4 kV |
| Recommended Fuse : | 16A |
| Solid/Stranded : | 0.75 - 2.5 mm² |
Logistical Information
| Commodity Code : | 90321080 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702423148646 |
| Gross Weight : | 0.442 kg |

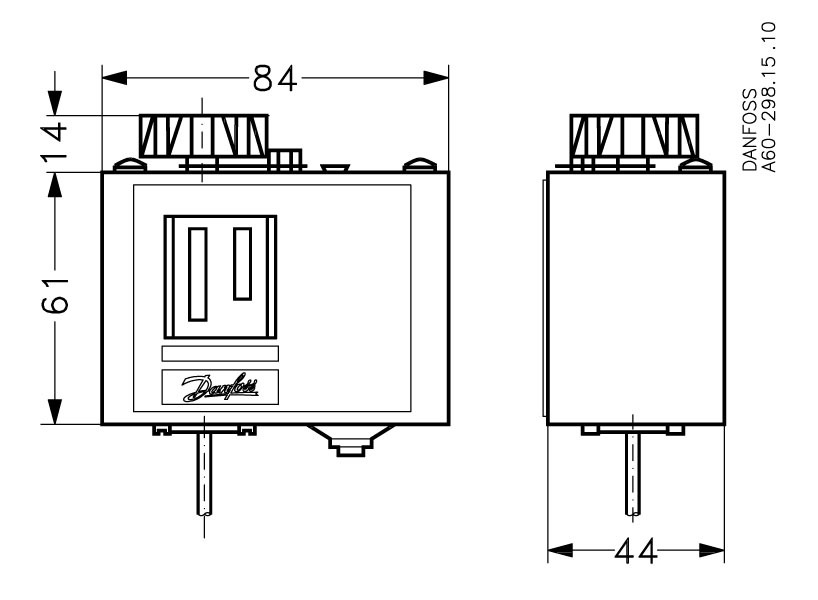

Measurements
| Capillary Tube Length : | 78 3/4 in, 2000 mm |
|---|---|
| Weight : | 0.37 kg |
Pressure
| Diff : | 6-20/7-20 °C |
|---|---|
| Differential Type : | Adjustable |
Sensors
| Sensor Size (Diameter x Length) : | 9.5x85 mm |
|---|---|
| Sensor Type : | Remote bulb |
Standards
| Approval : | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LVD, PZH, RINA, RMRS, RoHS China, UKCA, c UL us UL353, CS C22.2, c UL us UL873, CS C22.2 |
|---|
Temperature
| Ambient Temperature : | -40-65 °C |
|---|---|
| Ambient Temperature Note : | 80 °C/176 °F for max 120 min |
| Ambient Temperature Range : | -40-65 °C |
| Diff Max Range Setting : | 7.0-23.0 °C |
| Diff Min Range Setting : | 6.0-20.0 °C |
| Diff Range : | 80-150 °C |
| Diff Type : | Adjustable |
| Diff at Max Range Setting : | 7.0-23.0 °C |
| Diff at Min Range Setting : | 6.0-20.0 °C |
| Max Sensor Temperature : | 200 °C |
| Temperature Range : | 80-150 °C |
