Description
RT101 Thermostat M/15
Contact us for more information

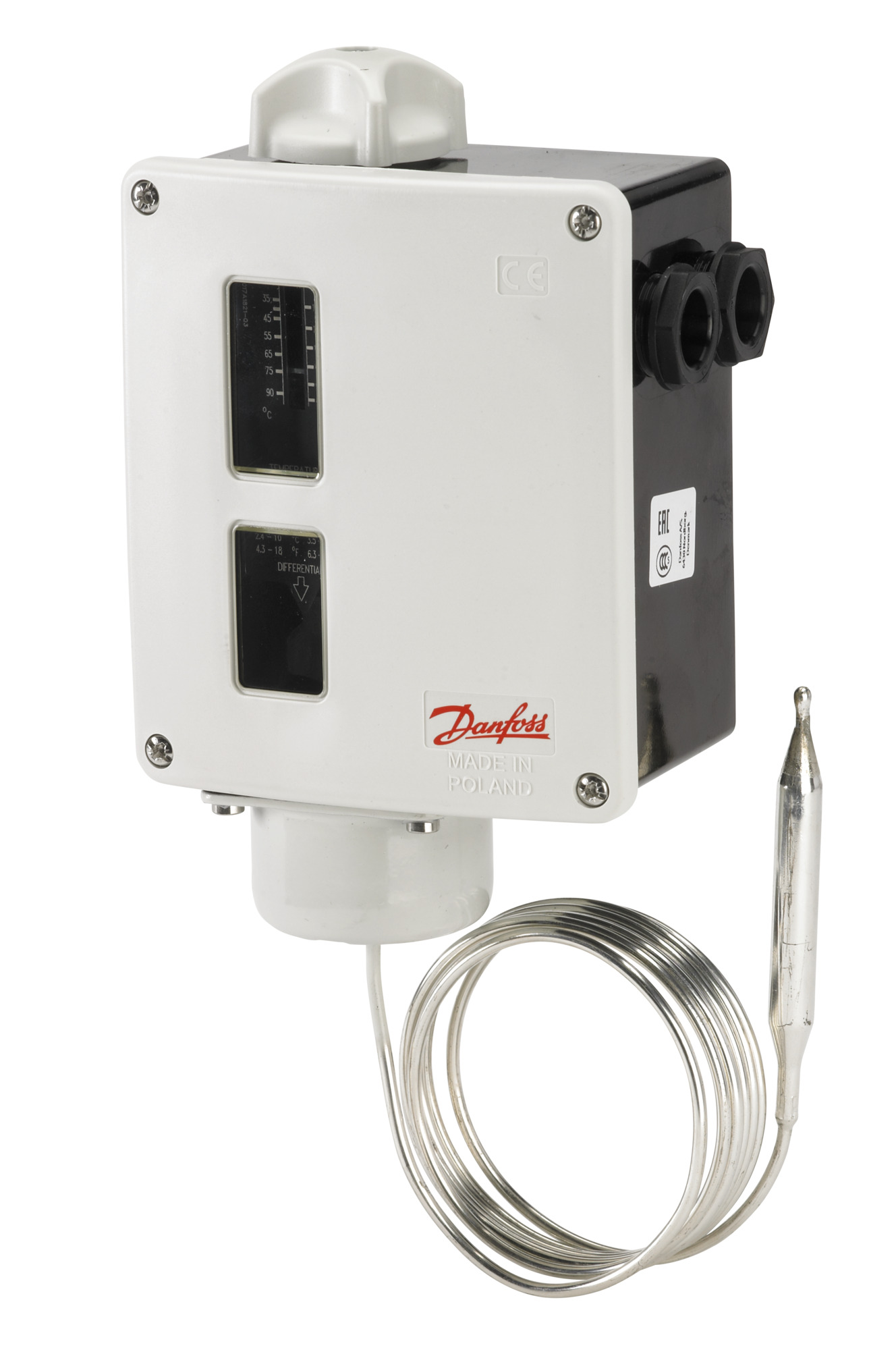

Thermostat, RT101
Danfoss
Product number:
RDC3054
| Product Group : | Danfoss Switches & Thermostats |
|---|
General Information
| Product Group : | Danfoss Switches & Thermostats |
|---|---|
| Charge Type : | Adsorption |
| Type : | RT101 |
Additional Info
| Family : | RT |
|---|
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating AC1 : | 10 A, 400 V |
| Contact Rating AC3 : | 4 A, 400 V |
| Contact Rating AC15 : | 3 A, 400 V |
| Contact Rating DC13 : | 12 A, 220 V |
| Contact Rating LR : | 28 A, 400 V |
| Electric Connection : | Female Screwed cable entry |
| Electric Connection Size : | 2xPg13.5 |
| Flex, Ferrules : | 0.2 - 1.5 mm² |
| Flex, No Ferrules : | 0.2 - 2.5 mm² |
| IP Class : | IP66 |
| Rated Impulse Voltage : | 4 kV |
| Solid/Stranded : | 0.2 - 2.5 mm² |
Logistical Information
| Commodity Code : | 90321080 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702423119448 |
| Gross Weight : | 0.962 kg |
Measurements
| Capillary Tube Length : | 78 3/4 in, 2000 mm |
|---|---|
| Weight : | 0.84 kg |
Pressure
| Differential Type : | Adjustable |
|---|
Sensors
| Sensor Pocket Length Min : | 4 13/32 in, 112 mm |
|---|---|
| Sensor Size (Diameter x Length) : | 9.5x80 mm |
| Sensor Type : | Remote bulb |
Standards
| Approval : | BV, CCC, CE, CMIM, DNV, EAC, GL, LLC CDC EURO-TYSK, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -50-70 °C |
|---|---|
| Diff Max Range Setting : | 3.5-20.0 °C |
| Diff Min Range Setting : | 2.4-10.0 °C |
| Diff Type : | Adjustable |
| Diff at Max Range Setting : | 3.5-20.0 °C |
| Diff at Min Range Setting : | 2.4-10.0 °C |
| Max Sensor Temperature : | 300 °C |
| Temperature Range : | 25-90 °C |
