Description

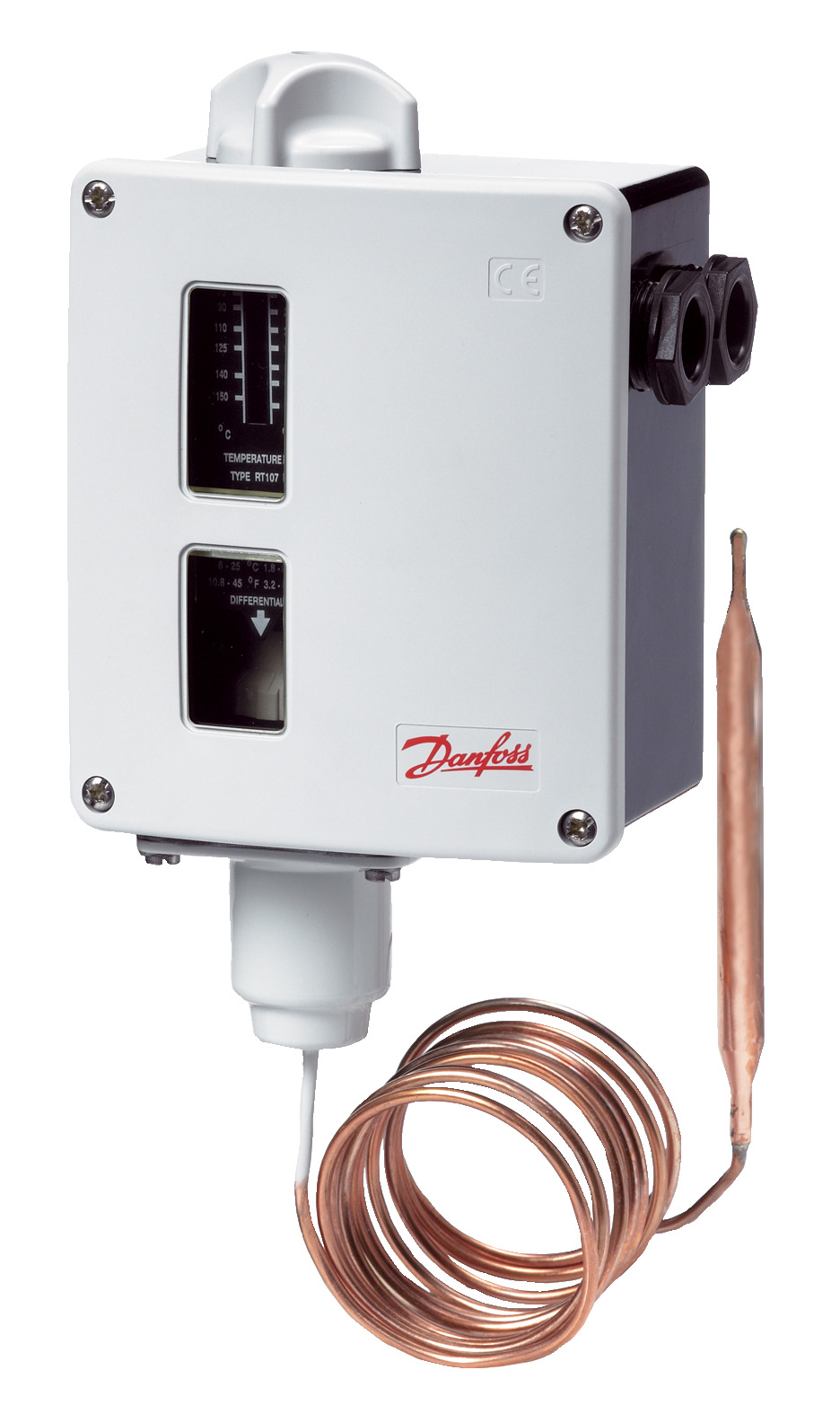

RT107 Thermostat M/15
Contact us for more information
Thermostat, RT107
Danfoss
Product number:
RDD3062
| Product Group : | Danfoss Switches & Thermostats |
|---|
General Information
| Product Group : | Danfoss Switches & Thermostats |
|---|---|
| Charge Type : | Partial |
| Type : | RT107 |
Additional Info
| Family : | RT |
|---|
Electrical
| Contact Function : | SPDT |
|---|---|
| Contact Rating AC1 : | 10 A, 400 V |
| Contact Rating AC3 : | 4 A, 400 V |
| Contact Rating AC15 : | 3 A, 400 V |
| Contact Rating DC13 : | 12 A, 220 V |
| Contact Rating LR : | 28 A, 400 V |
| Electric Connection : | Female Screwed cable entry |
| Electric Connection Size : | 2xPg13.5 |
| Flex, Ferrules : | 0.2 - 1.5 mm² |
| Flex, No Ferrules : | 0.2 - 2.5 mm² |
| IP Class : | IP66 |
| Rated Impulse Voltage : | 4 kV |
| Solid/Stranded : | 0.2 - 2.5 mm² |
Logistical Information
| Commodity Code : | 90321080 |
|---|---|
| Country Of Origin : | POL |
| EAN : | 5702423119615 |
| Gross Weight : | 0.956 kg |
Measurements
| Capillary Tube Length : | 78 3/4 in, 2000 mm |
|---|---|
| Weight : | 0.87 kg |
Pressure
| Differential Type : | Adjustable |
|---|
Sensors
| Sensor Pocket Length Min : | 4 13/32 in, 112 mm |
|---|---|
| Sensor Size (Diameter x Length) : | 9.5x110 mm |
| Sensor Type : | Remote bulb |
Standards
| Approval : | CCC, CE, CMIM, DNV, EAC, GL, KR, LLC CDC EURO-TYSK, LR, LVD, NKK, PZH, RMRS, RoHS, RoHS China, TYSK, UKCA |
|---|
Temperature
| Ambient Temperature Range : | -50-70 °C |
|---|---|
| Diff Max Range Setting : | 1.8-8.0 °C |
| Diff Min Range Setting : | 6.0-25.0 °C |
| Diff Type : | Adjustable |
| Diff at Max Range Setting : | 1.8-8.0 °C |
| Diff at Min Range Setting : | 6.0-25.0 °C |
| Max Sensor Temperature : | 215 °C |
| Temperature Range : | 70-150 °C |
