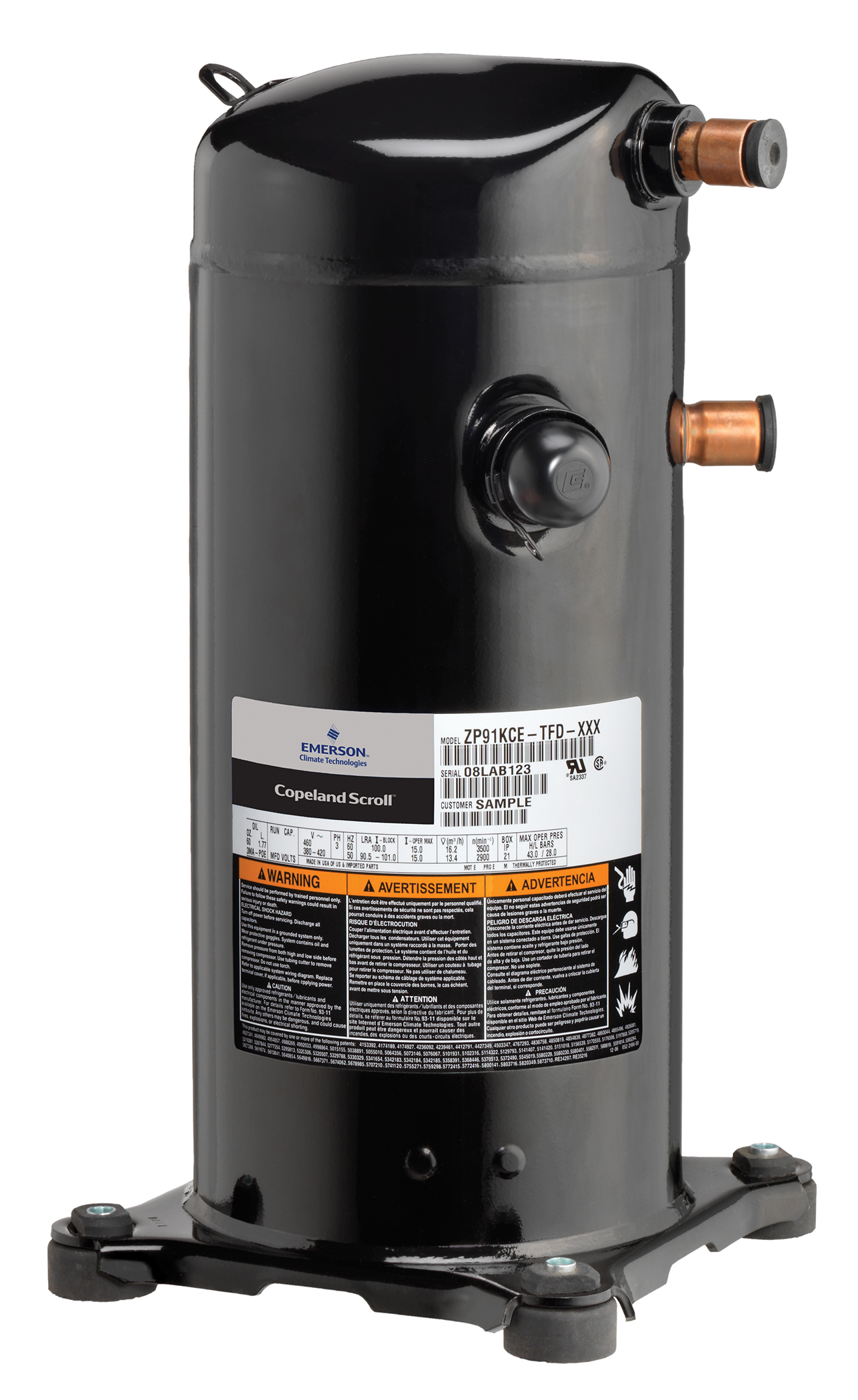

ZP57K3E-TFD-522 AC Compressor Scroll R410A 380V with Stub Tubes
Contact us for more information
ZP57K3E-TFD-522 AC Compressor Scroll R410A 380V with Stub Tubes
Copeland
Product number:
RBD9435
| Product Group : | ZP Copeland Scroll Compressor Range for R410A |
|---|
General Information
| Product Group : | ZP Copeland Scroll Compressor Range for R410A |
|---|---|
| Model Number : | ZP57K3E-TFD-522 |
| Type : | AC Compressor Scroll |
| VSD Capable : | Yes |
Compressor
| Displacement : | 9.5 m³/h |
|---|
Connections
| Discharge Line Connection : | 12.7 mm |
|---|---|
| Suction Line Connection : | 22.22 mm |
Electrical
| LRA : | 74 A |
|---|---|
| MOC : | 10.7 A |
| Phase : | 3 |
| Power Supply : | 380-420/3/50 V/Ph/Hz |
| RLA : | 10.7 A |
| Voltage : | 380-420 V |
Measurements
| Height : | 436 mm |
|---|---|
| Length : | 244.6 mm |
| Net Weight : | 41.7 kg |
| Weight : | 41.7 kg |
| Width : | 249.4 mm |
Motor
| Motor Type : | DOL |
|---|
Oil
| Oil Charge : | 10.7 cc |
|---|---|
| Oil Type : | POE |
R22 Performances
| R22 Nominal Capacity 7.2°C : | 111650 W |
|---|
Refrigerant
| Refrigerant : | R410A |
|---|
