Description

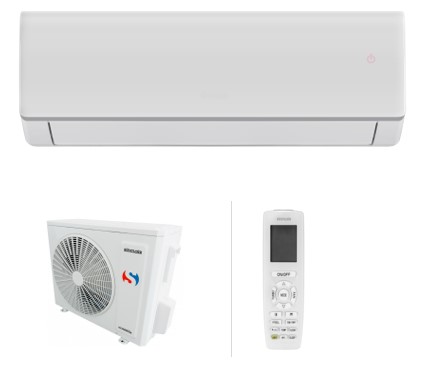

Sinclair 30000 BTU Flex Inverter R32 Set
Contact us for more information
Sinclair 30000 BTU Flex Inverter R32 Set
Product number:
SUH30BIF
| Product Group : | Sinclair |
|---|
General Information
| Product Group : | Sinclair |
|---|---|
| Model Number : | GWH30ALEXFK6DNA1I |
| Type : | Inverter R32 Set |
Air Volume/Air Flow
| Air Flow : | 1250/1100/1000/950 m³/h |
|---|
Connections
| Pipe Diameter Gas Side : | 5/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Cooling Capacity
| Cooling Capacity : | 8.9 kW |
|---|
Electrical
| Power Supply : | 220-240/1/50 V/Ph/Hz |
|---|
Energy Efficiency/Performance
| COP : | 3.4 |
|---|---|
| EER : | 3.2 |
Heating Capacity
| Heating Capacity : | 10 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 248 mm |
|---|---|
| Height (IU) : | 325 mm |
| Net Weight (IU) : | 16 kg |
| Width (IU) : | 1081 mm |
Measurements
| Height : | 660 mm |
|---|---|
| Length : | 402 mm |
| Weight : | 41.5 kg |
| Width : | 958 mm |
Outdoor Unit Attributes
| Depth (OU) : | 402 mm |
|---|---|
| Height (OU) : | 660 mm |
| Sound Pressure Level (OU) : | 59 dB(A) |
| Weight (OU) : | 41.5 kg |
| Width (OU) : | 958 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Piping Length : | 25 m |
Refrigerant
| Additional Charge : | 40 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 1.5 kg |
Sound Power/Pressure
| Sound Pressure Level : | 44 dB(A) |
|---|
Temperature
| Temperature Range Cooling : | -15~43 °C |
|---|---|
| Temperature Range Heating : | -15~24 °C |
| File name | Extension | Size |
|---|---|---|
| Brochures | 4.57 MB |
Set Component Parts
